Automatic 4 Heads Silica Gel Desiccant Bottles Weighing Filling Capping Machine Line

Application:

This filling line machine is suitable for the filling of granular materials in food, daily necessities and other industries, such silica gel, desiccant, biltong, beef jerky, pet food, as candy, sugar, salt, dried fruit, tea leaf, chocolate beans, nuts, peanuts, oatmeal, beans, puffed food, fish feed, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic 4 Heads Silica Gel Desiccant Bottles Weighing Filling Capping Machine Line

FEATURES

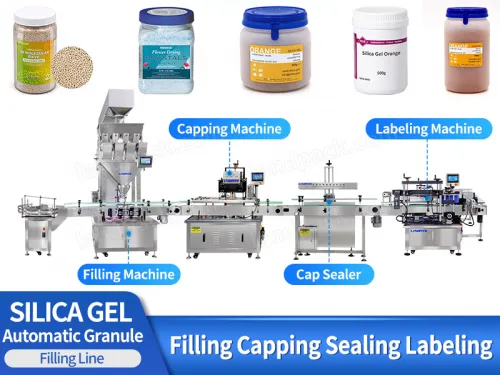

1. This line uses automatic bottle feeding, linear scale filling machine, four-wheel capping machine, wafer positioning round bottle labeling machine, and collection platform to form a fully automated production line.

2. The machine frame of the whole line is made of SUS304 material, with a unique and beautiful appearance.

3. The design of automatic production line is extremely east to be make up the operation line combined with the filling system,weighing filling system or labeling system.

4. It is controlled by microcomputer and photoelectric technology, with high precision and fast speed.

Automatic 4 Heads Grain Granule Particle Bottles Weighing Filling Capping Machine Line

WORKFLOW

Empty Bottle Feeding

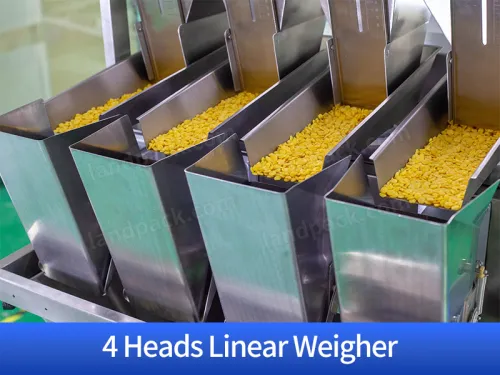

4 Heads Linear Granule Filling

Capping

Aluminum foil sealing

Labeling

Finished Product Output

PARAMETER

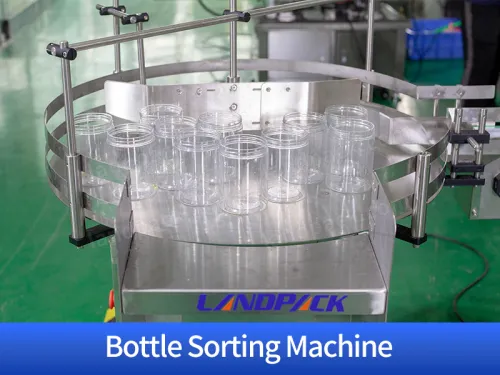

	Bottle conveyor feeding device
	Machine Model	LD-LP800N
	Power Supply	220V/110V, 50-60Hz, 200W
	Turntable Diameter	800mm（Could be customized）
	Suitable Bottle Diameter	20-100mm
	Suitable Bottle Height	30-320mm
	Working Speed	40-60bottles/min(（Could be customized）)
	Package Size	123010101260mm（Could be customized）
	Gross Weight	141kg

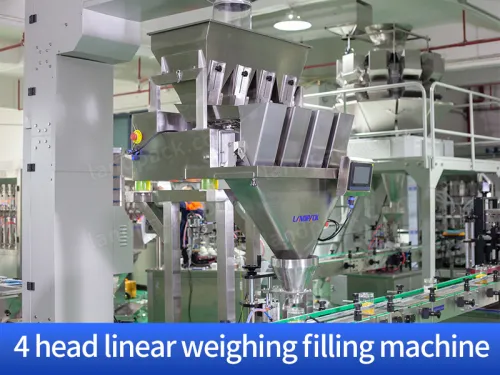

	Linear scale filling machine
	Model	LD-AF01
	Filling arrange	20-2000g
	Filling speed	15-25 bottle per minute
	Conveyor Length	2m
	Dimension	H2000W1000H2000mm
	Hopper Volume	3000ml
	Material settings	20
	Most Material kinds	4
	Power	AC220V 50/60HZ

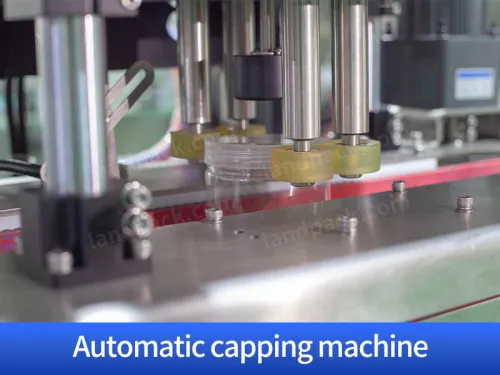

Automatic capping machine with cap feeder
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

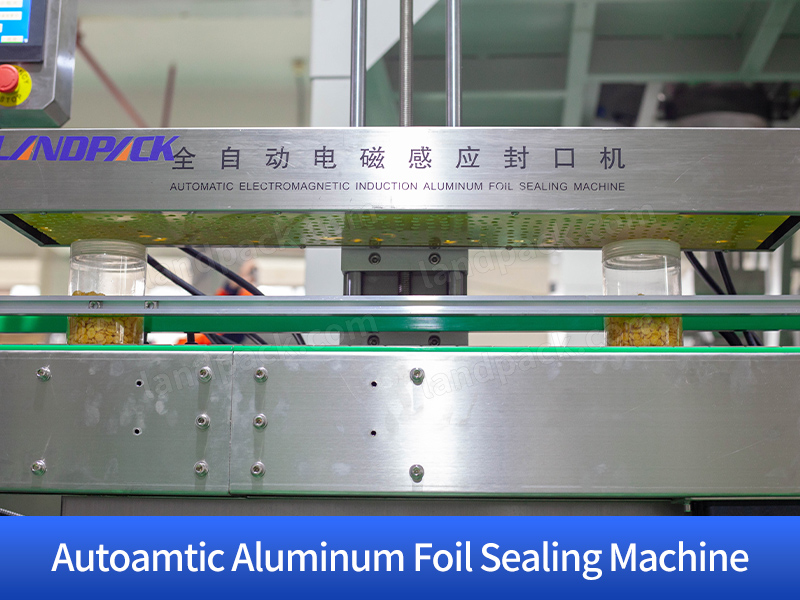

Autoamtic Aluminum Foil Sealing Machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

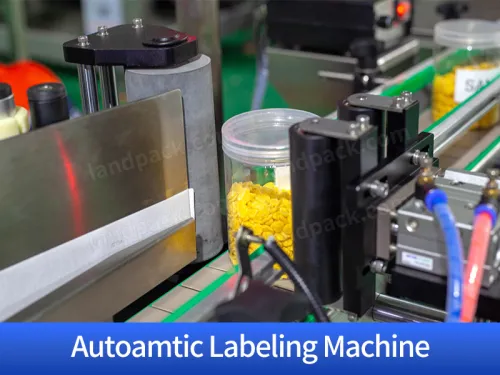

Autoamtic Round Bottle Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg
