Applications

Automatic Multi Lane Stick Sachet Granule Silica Gel Desiccant Packaging Machine

Application:

Automatic fine particles multi track 4 side sealing sachet packaging machine, suitable for the 3/ 4 sides sealing packing of many kinds of fine granule products, such as silica gel, desiccant, small grains, coffee, seeds, spice, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

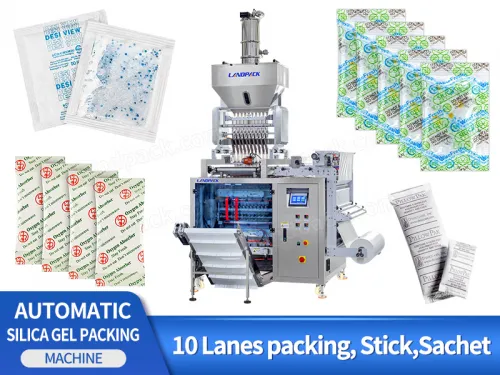

Automatic Desiccant Multi Track Silica Gel Sachet Packaging Machine

FEATURES

1. Extra functions set up, for example, sachet cutting can choose dotted line knife or flat cutting knife, abnormal shape knife etc, and can choose different kinds of alarm requirement.

2. A high degree of automation, machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting, cutting dotted line cutting, and transverse cutting to outputting finished sachets.

3. High precision whole rolling type heat sealing rollers are adopted as sealing mould, four side sealing, and multi-lane sachet form. With high packing speed, smooth bag shape, delicate and beautiful, packing and high efficiency.

4. Easy and fast to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting, and transverse cutting through man-machine interface.

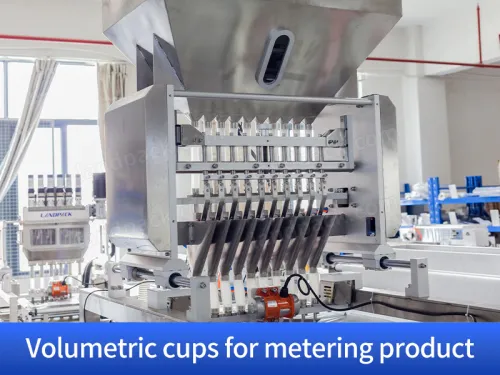

5. Accurate in measurement. According to different granule material, specially designed of cylinder pushing vibrating type or flat shape push pull type adjustable measuring mechanism.

6. Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function.

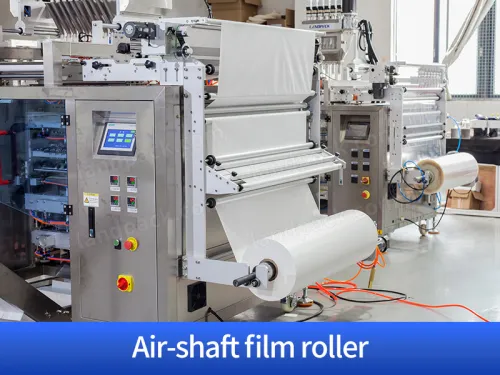

7. The machine with film automatic correction and film damping mechanism, to ensure the straightness and tension stability of film, and make the pouch more smooth and beautiful.

Automatic Desiccant Multi Track Silica Gel Sachet Packaging Machine

WORKFLOW

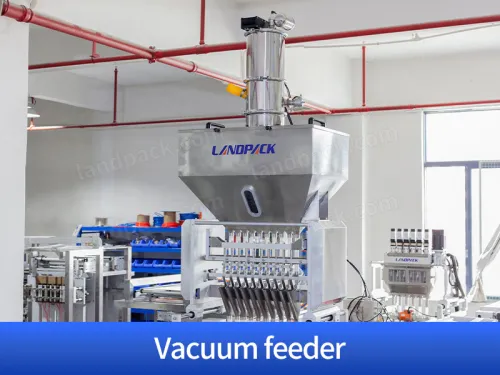

Automatic Vacuum Feed

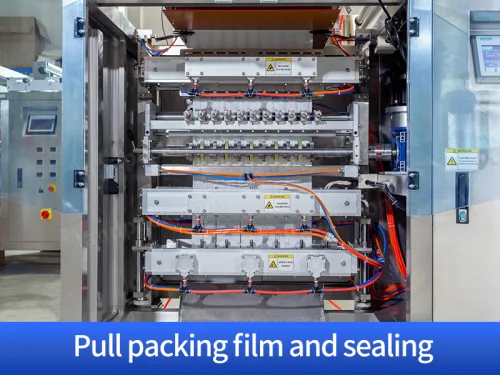

Automatic Bag Making And Sealing

Automatic Servo Motor Filling

Output Feeding

PARAMETER

	Multi Lane Packing Machine
	Model	LDFS-960G
	Production capacity	Max. 210 bags/min
	Diameter of the film roll	Maximum 300mm
	Bag width	35-60 mm
	Outer bag size	The longest 120mm widest 60mm product packaging
	Air pressure	0.5-0.7Mpa
	Machine noise	Less than 80db(A)decibel
	Heating power	2.8 Kw
	Total weight of the machine	300KG

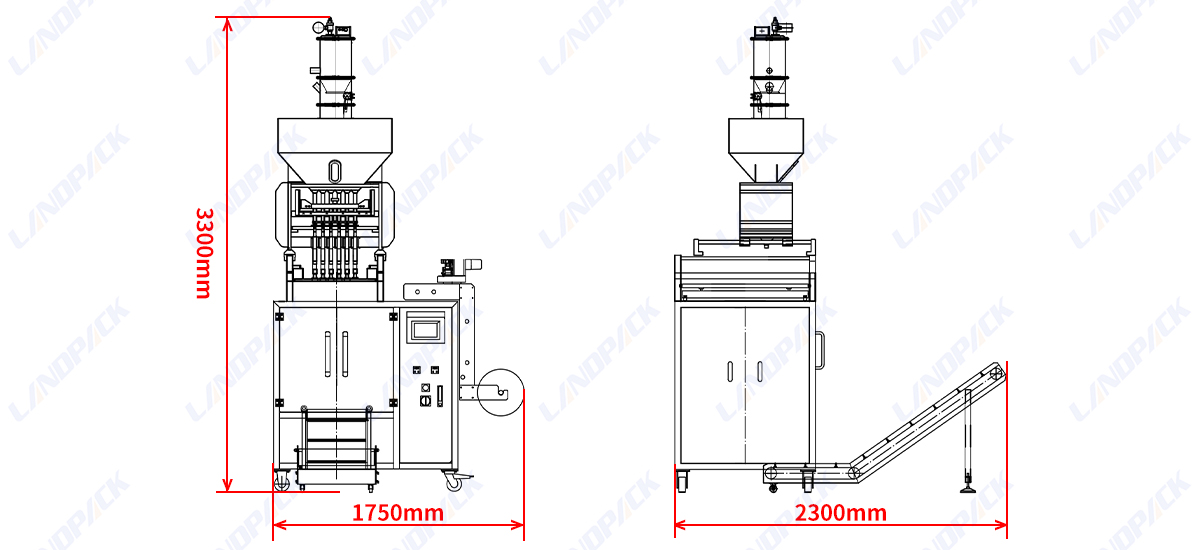

	Machine size	950mm1470mm1750mm
