Applications

Automatic Silica Gel and Desiccant Packaging Machine Multi Lane Sachet Packaging Machine

Application:

It is used for automatic filling of various granule into bags.Such as Desiccant, silica gel, sugar, salt, coffee, candy, seed, sesame, bean, Health Products Industry and so on.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is used for automatic filling of various granule into bags.Such as Desiccant, silica gel, sugar, salt, coffee, candy, seed, sesame, bean, Health Products Industry and so on.

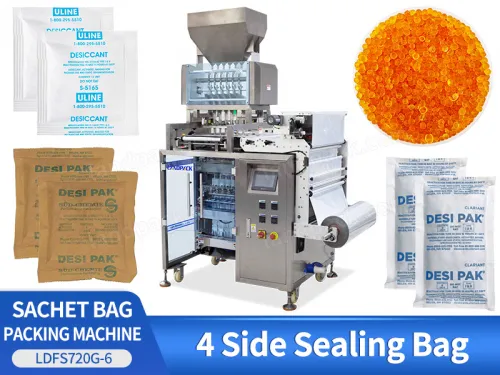

Automatic Silica Gel and Desiccant Packaging Machine Multi Lane Sachet Packaging Machine

FEATURES

1. Multi lanes machine can produce multi lanes bags at same time.

2. Machine main function: automatic split film at right position, liquid measuring and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

3. Other function: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step etc.

4. Stainless steel contact part and the machine outer shell, high feature for liquid running environment.

5. High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at precisely position.

6. PLC controller, high function and control the whole machine’s work steps.

Automatic Silica Gel and Desiccant Packaging Machine Multi Lane Sachet Packaging Machine

WORKFLOW

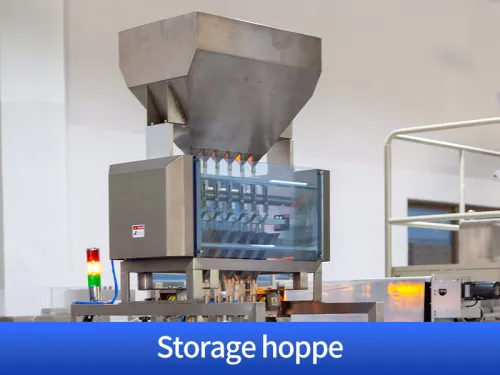

Automatic Feed

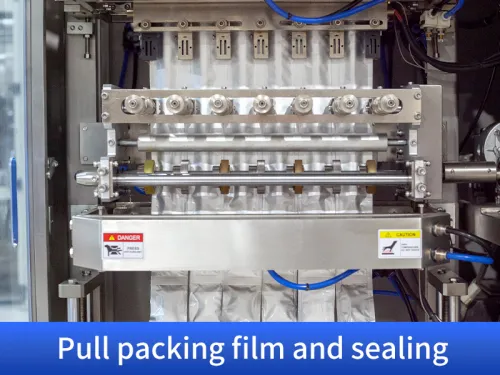

Automatic Bag Making And Sealing

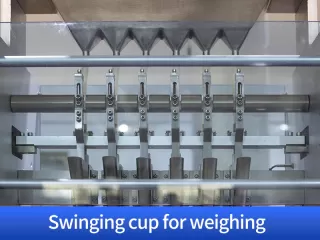

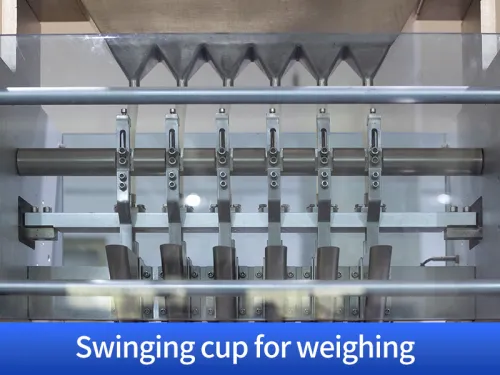

Automatic Servo Motor Filling

Output Feeding

PARAMETER


Model	LD480K	LD720K	LD960K
Track Number	4~6Track	4~10Track	4~12Track
Filling Method	1.Volumetric cup; 2.Weigher
Capacity	Max.35 cycle/min
Sachet Size	L:45--120mm; W:35-60mm	L:45--120mm; W:35-90mm	L:45--120mm; W:35-120mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm
Sealing Type	4 sides sealing	4 sides sealing	4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa 0.8m³/min; 2.8kw	0.8 mpa 0.8m³/min; 4.1kw	0.8 mpa 0.8m³/min; 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg
