Applications

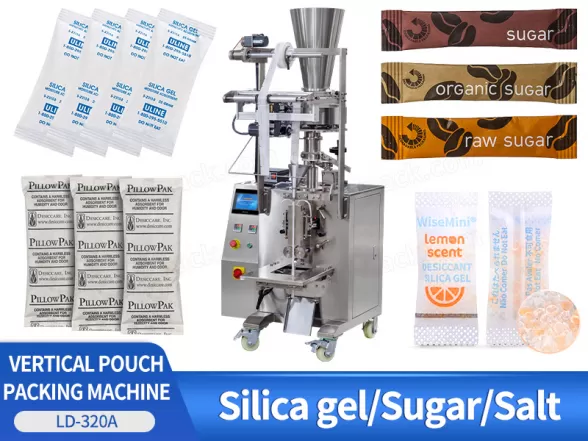

Low Cost Silica Gel 4 Side Sealing Sachet Packaging Machine

Application:

Suitable for small granule material, such as silica gel, desiccant, sugar, salt, crystal monosodium glutamate, seasoning, washing powder, pesticides, chemicals, feed and other small granule material automatic 4 Side Sealing Sachet packing.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

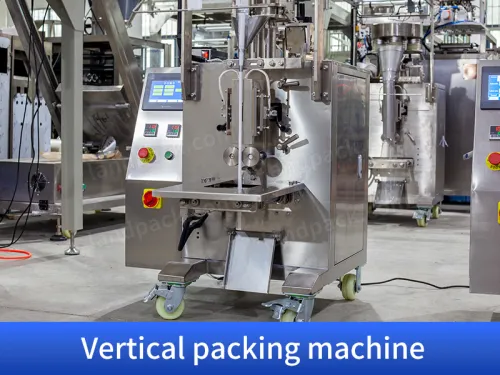

Low Cost Silica Gel 4 Side Sealing Sachet Packaging Machine

FEATURES

1. Products dosing, Filling, Laminate heat sealable pouch making and sealing;

2. Stainless steel 304 structure and surface;

3. Weighing and Packaging PLC & HMI Control Integrated, More stable operation, Easy for parameter setting;

4. Simple changing of pouch former, to adapt different pouch size requirement;

5. Intelligent temperature controlling configuration, ensure the artistic and neat sealing;

6. Configure with packaging film pre-pulling device, to enable stable pouch making;

7. Easy to change the packaging film.

Low Cost Silica Gel 4 Side Sealing Sachet Packaging Machine

WORKFLOW

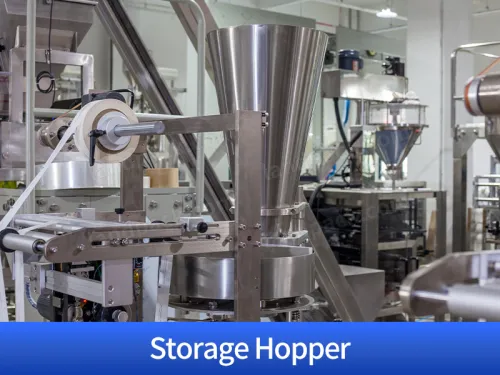

Material Feeding

Volumetric Cups Measuring

Automatic Servo Motor Filling

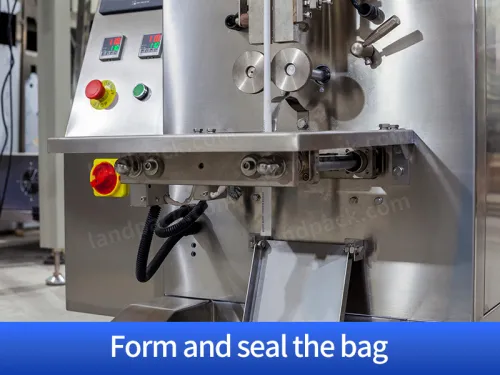

Pouch Packing

Output Feeding

PARAMETER

Low Cost Silica Gel 4 Side Sealing Sachet Packaging Machine
Type	LD-320A3	LD-380A3
Film Width	120-320mm	180-380mm
Bag Length	50-200mm	60-280mm
Bag Width	50-150mm	60-180mm
Range of Measurement	50-500ml	50-570ml
Film Roll Diameter	Max.320mm	Max.380mm
Packaging Rate	35-70bag/min	35-70bag/min
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine Size(LWH)	9706801950mm	11008002150mm
Machine Quality	300KG	450KG
Optional device	1.Date Printing,2.Hole Punching Device,3.Linking bag device,4.Air-filling Device,5.Tear Notch Device
