Automatic Granule Product Line Can Jar Sealing Capping Labeling Machine

Application:

This line consists of a can sealing machine, capping machine, labeling machine, etc. used for filling rice, bean, snack, popcorn, pickle, dry fruit into can, jar.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This line consists of a can sealing machine, capping machine, labeling machine, etc. used for filling rice, bean, snack, popcorn, pickle, dry fruit into can, jar.

Automatic Granule Product Line Can Jar Sealing Capping Labeling Machine

FEATURES

1.This production line adopts automation technology, imported PLC, imported inspection light eye, frequency converter and other electrical appliances, pneumatic components. It has the characteristics of high efficiency, intelligence, wide adaptability, good stability, etc., and is well received by users.

2.It adopts automatic bottle feeding, multi heads weigher filling machine, can sealing machine, labeling machine and bottle collecting machine to form a fully automated production line;

3.With an automatic clearing function, it is more convenient to use.

4.The machine frame of the whole line is made of SUS304 material, which is beautiful and durable;

5.Stable operation, low noise, convenient maintenance, fully comply with GMP certification, widely used in medicine, food and other industries;

6.Imported PLC and 7-inch touch screen man-machine interface, easy to operate;

7.This kind of production line is relatively advanced, and can be improved according to the different requirements of customers, and can be made into equipment that fully meets the needs of customers.

Automatic Granule Product Line Can Jar Sealing Capping Labeling Machine

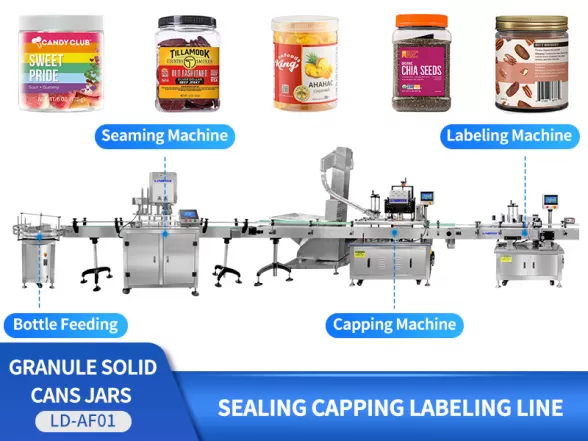

WORKFLOW

Empty Bottle Feeder

Can Sealing

Capping

Labeling

PARAMETER

			Bottle conveyor feeding device
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm（Could be customized）
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(（Could be customized）)
			Package Size	123010101260mm（Could be customized）
			Gross Weight	141kg

			Can Sealing Machine
			Number of sealed cans	1
			Sealing speed	15-24 bottles/minute
			Can sealing height	50-200mm
			Applicable bottle diameter	50-126mm
			Power	0.55KW
			Weight	130KG
			Size	4006001450mm
			Voltage	220V, 50/60Hz

Capping Machine
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg

Autoamtic Round Bottle Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg
