Automatic Solid Canned Food Filling Mixing Capping Machine Production Line

Application:
It is mainly suitable for packaging of pickles and food (including pickles, snack, popcorn, nuts, candy, beef jerky, dry fruit, dry food, pet food, screws, etc.),have strong versatility.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is mainly suitable for packaging of pickles and food (including pickles, snack, popcorn, nuts, candy, beef jerky, dry fruit, dry food, pet food, screws, etc.),have strong versatility.

Automatic Solid Canned Food Filling Mixing Capping Machine Production Line

FEATURES

Performance Description

1. Joint control device for tank lids: When a tank body enters, the tank lids are allocated accordingly. If there is no tank, there is no lid, and the tank is not sealed without a lid.

2. The design of the operation panel is reasonable and simple, with PLC microcomputer control and touch screen man-machine interface.

3. Simultaneously filling solid food and sauce liquid, achieving mixed filling, saving labor, and improving production efficiency.

4. High-speed capping machine by servo motor control.

5. The production speed can be adjusted according to actual needs.

Features:

1. Unmanned operation, fully automatic lower lid and sealing, saving people and effort;

2. Improve production efficiency, 3-4 times that of semi-automatic sealing machines;

3. The tank body does not rotate during the sealing process, which protects the product and the tank body better, and the sealing quality is better than similar domestic products.

Automatic Canned Food Fruit Canning Machine Production Line

WORKFLOW

Bottle Sorting Machine

Accuracy Weighing and Filling

Magnetic Pump Filling Machine

Autoamtic ServoCapping Machine

Autoamtic Aluminum Foil Sealing Machine

Autoamtic Labeling Machine

Collecting Table

PARAMETER

Multi-heads weigher
Model	LD-14	LD-16	LD-12	LD-10	LD-8
Number of weighing heads	14	16	12	10	8
Per weighing range	10-2000g	10-1000G
Weighing Accuracy	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g	±0.3-1.5g
Weighing Speed	120bag/min	180bag/min	100bag/min	70bag/min	60bag/min
Hopper capacity	1300ml	1300ml	1700ml	1300ml	1300ml
Hopper type	Double row unrecorded bucket	Double row unrecorded bucket	single row bucket	Double row unrecorded bucket	Double row unrecorded bucket
Product default mode	99 modes
Control element	10.4-inch LCD aiming screen

			Accuracy weighing and filling
			Model	LF-ZP-008
			Output	20-30 bottles/min
			Bottle diameter	Φ30mm-Φ135mm (customizable)
			Bottle height	40mm-200mm (customizable)
			Power	750W,220V,50Hz
			Weight	200kg

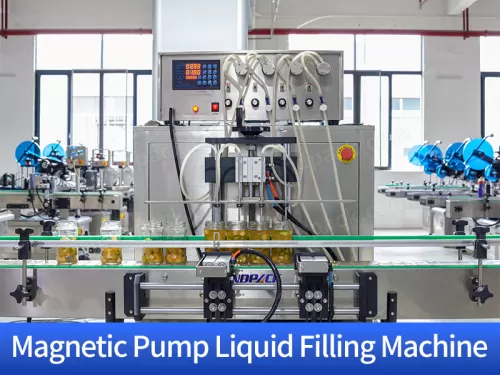

Magnetic Pump Liquid Filling Machine
Container size	φ20-160mm H30-300mm
Max flow rate	5500ml/min	5500ml/min	7500ml/min	12000ml/min
Material of pump	304stainless steel	316stainless steel	316stainless steel	304stainless steel
Filling accuracy	≤100ml deviation≤±1ml

Filling speed	20-50pcs/min	20-50pcs/min	25-60pcs/min	40-65pcs/min
	(depending on bottles and flling liquid)
Power supply	220V-50HZ/110V-60HZ
The whole machine power	2000W
Packing weight	About 150kg
Packing size	About 20008201580mm
Size of air compressor connector	OD8mm

Automatic Capping Machine With Cap Feeder
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg

Autoamtic Aluminum Foil Sealing Machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Autoamtic Round Bottle Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-00(High speed labeling)
Labeling speed	Max 120bottle/min	Max 140bottle/min
Labeling accuracy	±1mm	±1mm
Label maximum width	100mm（Could be customized）	100mm（Could be customized）
Size of the object being attached	Φ30mm-Φ100mm（Could be customized）	Φ30mm-Φ80mm（Could be customized）
Label ID	Φ76mm	Φ76mm
Label OD	MaxΦ330mm	MaxΦ380mm
Voltage	220V、50HZ	220V、50HZ
Power	1.5KW	1KW
Weight	250kg	300kg

			Collecting Device
			Capacity	30-50Bottle
			Material	Stainless Steel 304
			Dimension	3002000100mm
			Weight	200KG
