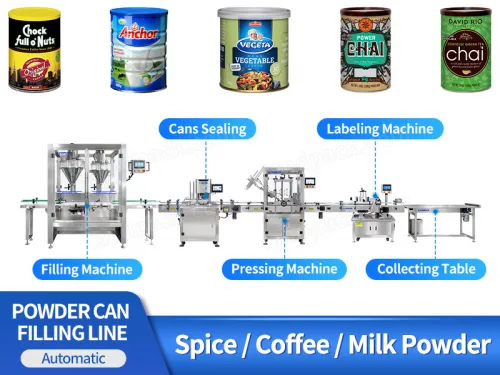

Automatic Spice Powders Cans Jars Filling Packaging Line

Introduction:

This automatic spice powders cans jars filling packaging line is widely used in all kinds of tins, and cans filling, such as spice, milk powder, coffee powder, protein powder, chicken powder, chicken essence, monosodium glutamate, food additive, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Spice Powders Cans Jars Filling Packaging Line

FEATURES

1. The structure of the whole filling machine, reasonable layout, changing packaging varieties, cleaning, and convenience.

2. Filling double-screw head in order to ensure high precision canning.

3. This Powder Filling Machine can use cans or bottles of containers, no bottles and bottles are not filling, can be configured automatically into the bottle into the tank system.

4. The production capacity and automatic are very high,so the labor cost can be saved.

5. Imported servo motor, high speed, large torque, which greatly improves the accuracy of packaging.

Automatic Powder Filling Sealing Labeling Machine Can Tin Seaming Line

WORKFLOW

Double Heads Powder Filling Weighing

Can sealing

Plastic Lids Pressing

Bottle Labeling

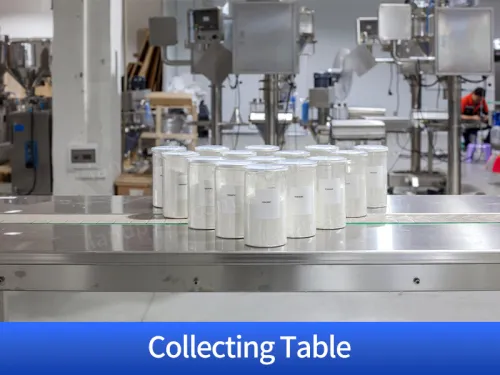

Finished Product Output

PARAMETER

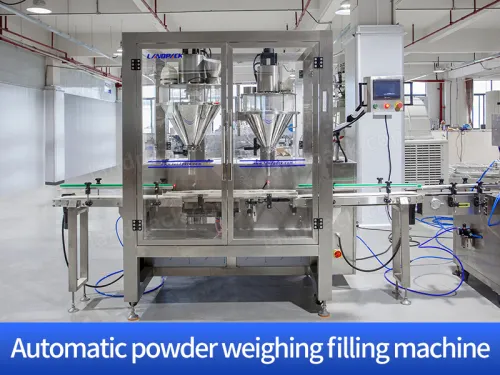

			Automatic powder weighing filling machine
			Model	LD-PAF01
			Filling Range	10-5000g (Customizable)
			Filling Speed	20-40 bottles/min
			Measurement accuracy	±1%
			Power	5 KW
			Working power supply	220V,50Hz
			Working pressure	0.6-0.8MPa
			Weight	500kg
			Size	L11782W3465.09H2523.52(mm)

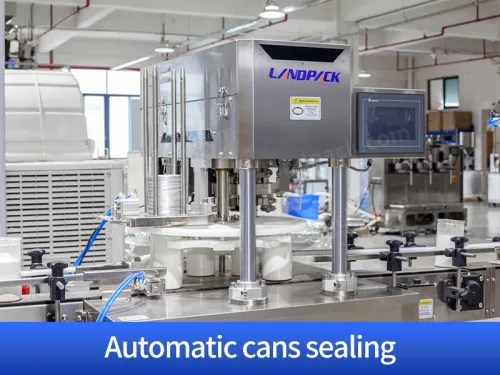

			Vacuum can seaming machinewith nitrogen flush
			Bottle type	round,square bottles etc need to be customized.
			Bottle diameter	50-120cm(can be customized)
			Bottle height	50-150mm(can be customized)
			Speed	5-8BPM(it depends on product)
			Caps feeding type	ausomtaic lids feeding
			Machine voltage	220V(can be customized)
			Machine size	200010001700mm
			Machine weight	550kg

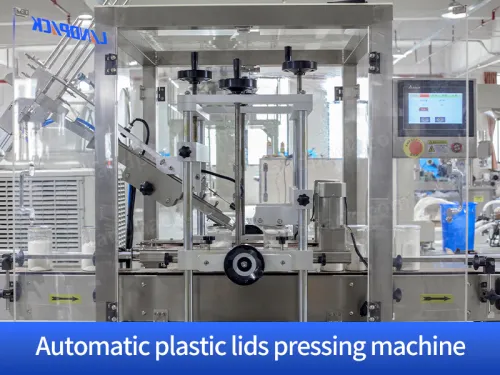

			Automatic plastic lids pressing machine
			Seal Can diameter	φ40~φ130mm(can be customized)
			Bottle's height	60~300mm(can be customized)
			Cap's height	5~15mm
			Speed	30-50 Cans/minute (can be customized)
			Storage Can cover	about 100pcs
			Machine Size	1900x800x1700
			Power	220V/380V, 0.68KW
			Air Pressure	0.6MPa

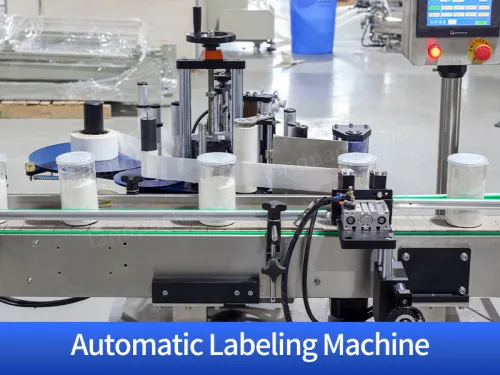

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
