Automatic Tin Can Bottle Filling Seaming Machine Spice Powder Canning Line

Introduction:
It's suitable for the automatic filling of various powder products, such as spice powder, milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It's suitable for the automatic filling of various powder products, such as spice powder, milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.

Automatic Tin Can Bottle Filling Seaming Machine Spice Powder Canning Line

FEATURES

1. Landpack Powder Weighing Canning Bottling Filling Machine Line, simple to match, practical, and inexpensive.

2. Adopt servo system to control screw feeding, photoelectric sensor technology.

3. This Powder Filling Machine can use cans or bottles of containers, no bottles and bottles are not filling, can be configured automatically into the bottle into the tank system.

4. The production capacity and automatic are very high,so the labor cost can be saved.

5. The transmission system of the filling machine is driven by a Japan Panasonic servo motor for high accuracy and stability.

Automatic Food Grade Single Head Powder Canned Sealing Machine Line

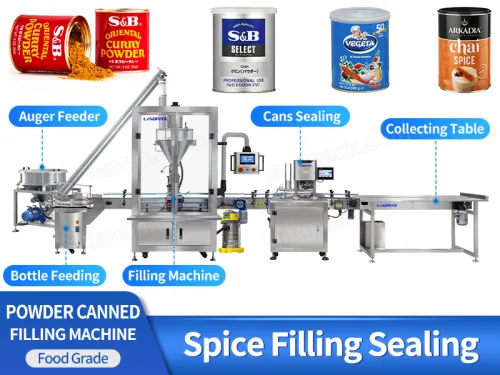

WORKFLOW

Automatic Empty Bottle Feeding Device

Automatic Single Head Powder filling

Can Sealing

Finished Product Output

PARAMETER

			Bottle conveyor feeding device
			Machine Model	LD-LP800N
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm（Could be customized）
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	40-60bottles/min(（Could be customized）)
			Package Size	123010101260mm（Could be customized）
			Gross Weight	141kg

Automatic powder weighing filling machine
Model	LFP-01（Single Head Powder Filling）	LFP-01（Single Head Powder Filling）	LFPD-50-30（Double Head Powder Filling）
Filling Weight	10-5000g(Replace screw specifications)	10-5000g(Replace screw specifications)	100-2000g
Bottle diameter	Φ30-Φ140mm(Could be customized)	Φ30-Φ140mm(Could be customized)	Φ60-Φ135mm
Bottle Height	50mm-200mm(Could be customized)	50mm-200mm(Could be customized)	601-260mm
Capacity	10-20Bottles/min	20-40Bottles/min	10-25bottles/min
Measure accuracy	≤500g,≤±1%；≥500g,≤±0.5%	≤500g,≤±1%；≥500g,≤±0.5%	100-1000g,≤±2g；≥1000g,≤±5g
Power	2.5KW	5KW	4.5KW
Hopper Capacity	50L	50L	50L，30L
Power	220V,50HZ	220V,50HZ	220V,50HZ
Voltage	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Weight	350kg	550kg	500kg

			Can Sealing Machine
			Number of sealed cans	1
			Sealing speed	15-24 bottles/minute
			Can sealing height	50-200mm
			Applicable bottle diameter	50-126mm
			Power	0.55KW
			Weight	130KG
			Size	4006001450mm
			Voltage	220V, 50/60Hz

			Collecting Table
			Capacity	30-50Bottle
			Material	Stainless Steel 304
			Dimension	3002000100mm
			Weight	200KG
