Automatic Doypack Bag Spout Pouch Filling Machine Premade Pouch Filling Liquid Machine Doy Pouch Packing Machine

Application:

Suitable for packaging laundry liquid, soy sauce, vinegar, milk, mineral water, edible oil, fruit juice, carbonated beverage, chemical liquid, liquid pesticide, insecticide, ect.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for packaging laundry liquid, soy sauce, vinegar, milk, mineral water, edible oil, fruit juice, carbonated beverage, chemical liquid, liquid pesticide, insecticide, ect.

Automatic Doypack Bag Spout Pouch Filling Machine Premade Pouch Filling Liquid Machine Doy Pouch Packing Machine

FEATURES

1.Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.

2.The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.

3.Automatic checking system can check bag situation, filling and sealing situation.

4.High-quality accessories are used to ensure the lasting stability of the machine.

5.The machine uses prefabricated bags with perfect packaging pictures, high vacuum and good sealing quality, thus, the product quality and grade are greatly improved.

Automatic Doypack Bag Spout Pouch Filling Machine Premade Pouch Filling Liquid Machine Doy Pouch Packing Machine

WORKFLOW

Take the bags

Code printing

Open Spout Pouch

Filling

Sealing

Finished Product Conveyor

PARAMETER

	Automatic Rotary Doypack Packing Machine
	Model	LD-8200/LD-8250
	Packing material	all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.
	size	W：70-200/100-250
	Filling range	10-1000g/20-2500g
	Packing speed	40-60bag/min（speed is determined by the product filling quantity）
	Average precision	≤ ±1%
	Total power	2.5KW
	Dimensions	1900mm X 1570mm X 1700mm（LWH）
	Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product

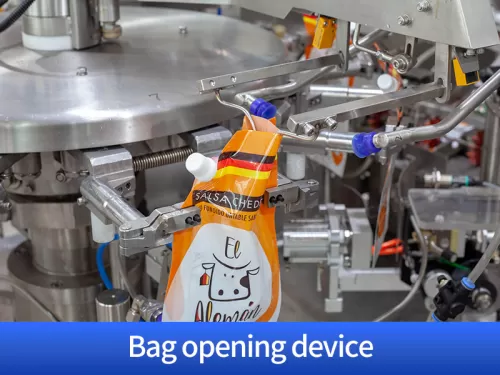

	Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
