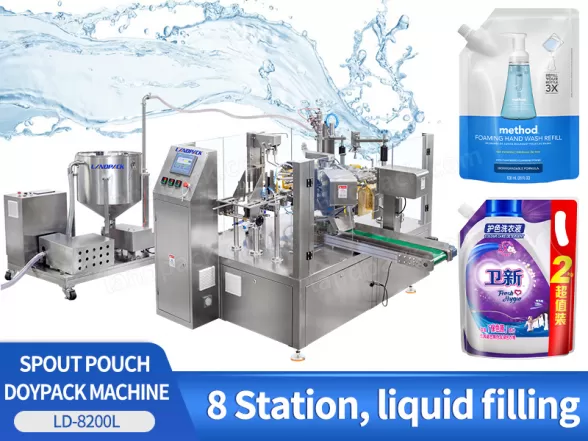

Automatic Rotary Spout Pouch Liquid Filling Sealing Machine Premade Spout Pouch Filling Packing Machine

Application:

It is suitable for all kinds of liquid packing for spout pouches, such as sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

It is suitable for all kinds of liquid packing for spout pouches, such as sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, paste, etc.

Multi-function Granule Rotary Packing Machine Premade Stand Up Zipper Pouch Packing Machine

FEATURES

1. Suitable for large specification bags, and automatic metering, filling and sealing.

2. The advanced bag giving device ensures a very high rate of giving bag.

3. The advanced design concept ensures the stability of equipment operation, reduces the defective rate and prolongs the service life of equipment.

4. High quality accessories are used to ensure the lasting stability of the machine.

5. The machine uses prefabricated bags with perfect packaging pictures, high vacuum and good sealing quality, thus, the product quality and grade are greatly improved.

Automatic Rotary Spout Pouch Liquid Filling Sealing Machine Premade Spout Pouch Filling Packing Machine

WORKFLOW

Take the bags

Code printing

Open zipper ang bag

Filling

Sealing

Finished Product Conveyor

PARAMETER

	Automatic Rotary Doypack Packing Machine
	Model	LD-8200/LD-8250
	Packing material	all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.
	size	W：70-200/100-250
	Filling range	10-1000g/20-2500g
	Packing speed	40-60bag/min（speed is determined by the product filling quantity）
	Average precision	≤ ±1%
	Total power	2.5KW
	Dimensions	1900mm X 1570mm X 1700mm（LWH）
	Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
	Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
