Premade Bag Stand Up Pouch Mini Doypack Powder Filling And Sealing Machine For Small Business

Introduction:

This mini doypack packing machine is suitable for all kinds of powder, such as Flour, milk powder coffee powder, starch,spice, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This mini doypack packing machine is suitable for all kinds of powder, such as Flour, milk powder coffee powder, starch,spice, etc.

Premade Bag Stand Up Pouch Mini Doypack Powder Filling And Sealing Machine For Small Business

FEATURES

1.Easy to operate,adopt advanced PLC from Japan Mitsubishi, mate with touch screen and electric control system, the man-machine interface is friendly.

2.Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

3.Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

4.The width of the bags could be adjusted by electrical motor.

Premade Bag Stand Up Pouch Mini Doypack Powder Filling And Sealing Machine For Small Business

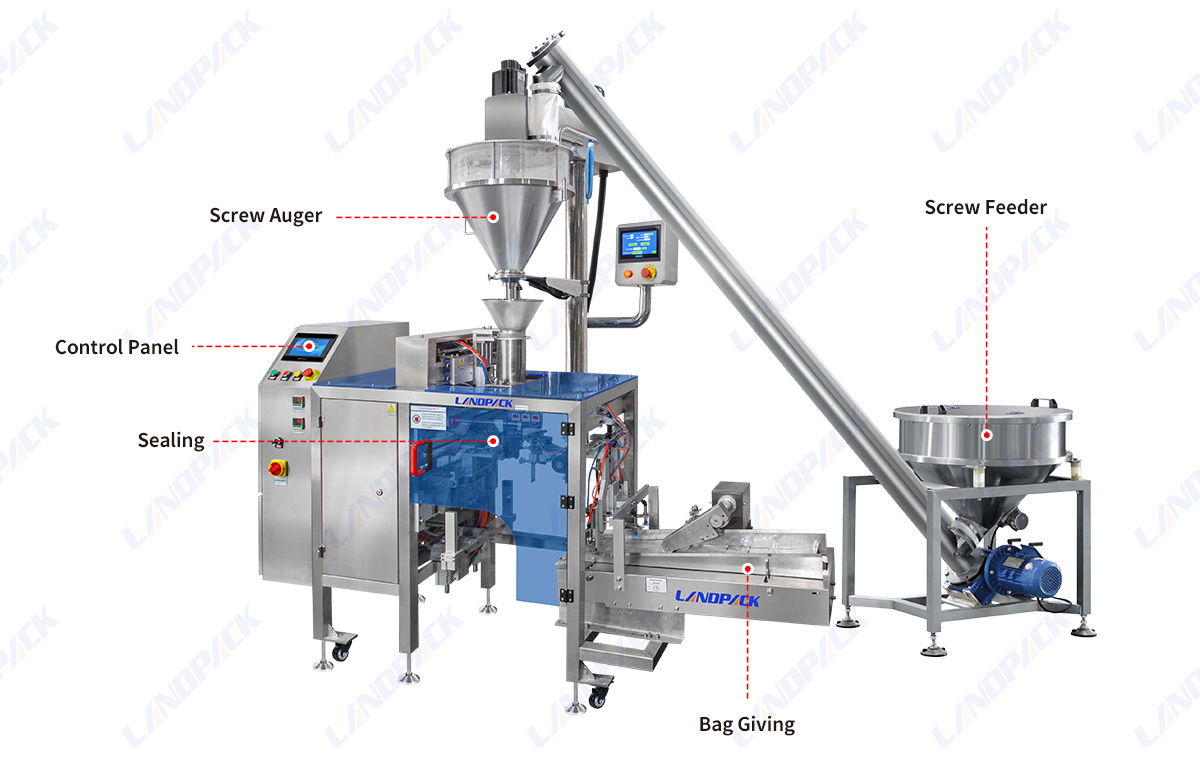

WORKFLOW

Powder Screw Feeder

Feeding the Premade Pouch

Opening the Premade Pouch

Automatic Filling

Automatic Premade Pouch Sealling

Finish Product Outing

PARAMETER

Type	Economic Premade Stand Up Pouch Doypack Filling Sealing Machine
	LDB-200	LDB-300	LDB-430
Bag Material	Multi-layer Composite Premade Bag（e.g.: PET/PE）
Premade bag type	3-sides sealing bag, stand-up bag）
Upgraded Bag Type	（Need additional purchase	Gusset Bag, Zipper Bag, box bag
	of functional device）	(Need additional purchase of functional device
Bag size	70mm≤W≤150mm	80mm≤W≤300mm	80mm≤W≤300mm
	70mm≤L≤150mm	100mm≤L≤300mm	100mm≤L≤430mm
Speed	0~60bags/min	0~15bags/min
Sealing Type	Straight grain, pitch is 1mm (Optional reticulate)
Sealing Width	10mm（5--20mm) can be customized
Voltage	220V, Single-phase,50/60HZ, 1.2KW
Air Pressure	0.65Mpa
Air Consumption	Standard machine, no additional function
Body Dimension	17706001230mm	17706001360mm
Packing Dimension	18607101550mm	18607101650mm
	Export non-fumigation wooden case
