Applications

Automatic Fine Granule Sugar Salt Spices Bottle Filling Capping Line

Application:

This fine granule bottle filling line is suitable for packaging various granular products, such as sugar, salt, seeds, nut, cashew, rice, sesame, monosodium glutamate, pepper, chicken essence, milk powder, coffee, seasoning powder and other powder, small particles of uniform materials.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Suitable for all kinds of containers on the market, such as plastic cans, bottles, jars, etc.

Automatic Fine Granule Sugar Salt Spices Bottle Filling Capping Line

FEATURES

1. Enhance productivity with our rotary filling machine designed to significantly increase filling speed and efficiency.

2. Achieve precision and reduce labor costs with our robotic cover system, ensuring accurate and consistent capping every time.

3. Protect your products with our moisture-proof sleeve shrink labels, providing a secure and durable labeling solution.

Automatic Fine Granule Nut Cashew Spices Bottle Filling Capping Line

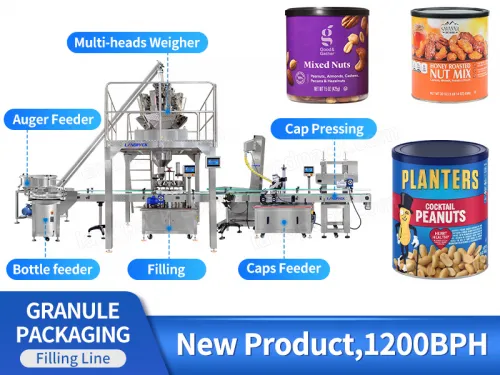

WORKFLOW

Automatic Auger Feeder

Automatic Granule Filling

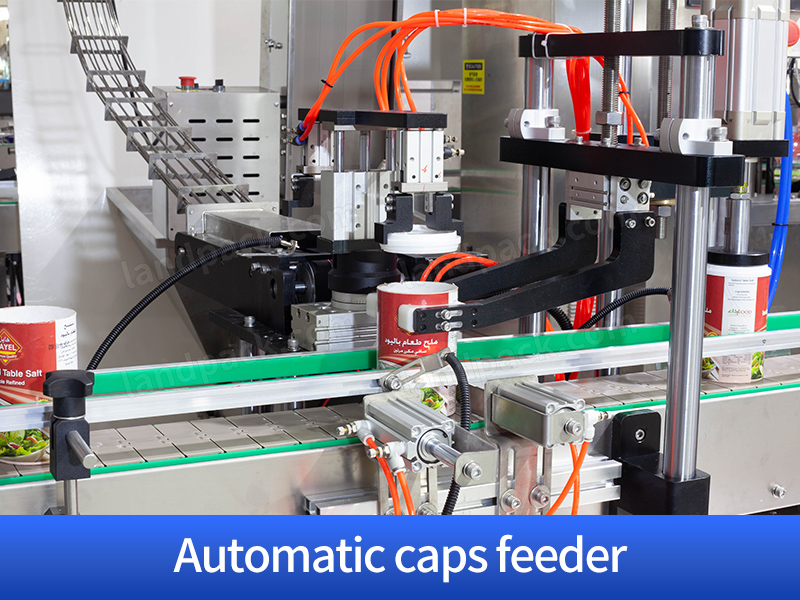

Automatic Caps Feeder

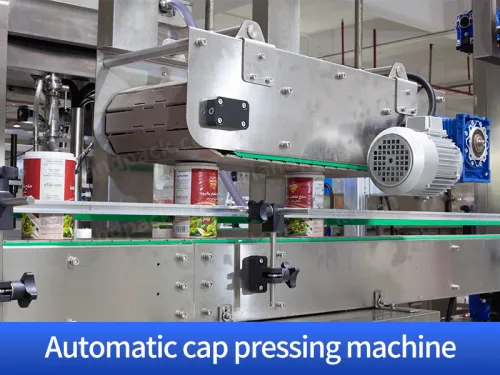

Automatic Cap Pressing

PARAMETER

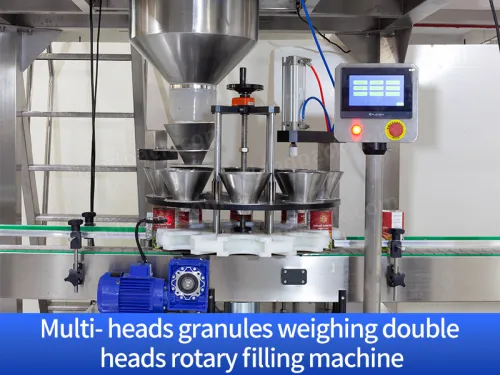

Multi- heads granules weighing double heads rotary filling machine
Model	LD-GZJ200M-R(double turntable filling)	LD-GZJ100M-R(Single turntable filling)
Material	304# Stainless steel	304# Stainless steel
Filling diameter	φ40 -φ130mm	φ40 -φ130mm
Applicable height	50-200mm (customized according to Bottle size)	50-200mm (customized according to Bottle size)
Filling speed	30-50 cans per minute	10-20 cans per minute
Air source	0.6-0.8Mpa	0.3-0.5Mpa
Voltage	220V,50HZ	220V,50HZ
Power	2.5KW	1.5KW
N.W./G.W.	200/320KGS	100/220KGS
Size	200010001400mm	20005001400

Caps Feeder
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg

			Bottle Capping Machine
			Capping form	Chain piece type capping
			Application bottle	According to customer's product
			Capping speed	30-50 bottles/min
			Capping voltage	220V 50/60Hz
			Air pressure	0.6-0.8MPa
			Packing size	1400(L)950(W)1760(H)mm
			Machine weight	About 450KG
