Applications

Automatic Multi Lane Small Bag Sachet Sugar Salt Filling Packaging Machine 12 Lane Sugar Stick Pack Machine

Application:

This machine is widely used for granulated sugar, brown sugar, white sugar, coffee, salt, rice, washing powder, desiccant, silica gel, medical and chemical granule/grain quantitative packaging.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This machine is widely used for granulated sugar, brown sugar, white sugar, coffee, salt, rice, washing powder, desiccant, silica gel, medical and chemical granule/grain quantitative packaging.

Automatic Multi Lane Small Bag Sachet Sugar Salt Filling Packaging Machine 12 Lane Sugar Stick Pack Machine

FEATURES

1.It is automatic sachet forming from plastic roll film , product filling , sachet sealing , cutting exactly.

2.According to customer requirements to design the sachet shape and size .

3.PLC touching screen English operation , it also could according to requirements to make different countries language on the touching screen .

4.With ribbon printer for date or batch No.

5.Different product will use different hopper and different feeders.

Automatic Multi Lane Small Bag Sachet Sugar Salt Filling Packaging Machine 12 Lane Sugar Stick Pack Machine

WORKFLOW

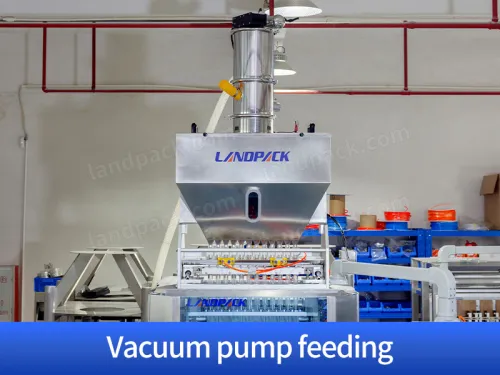

Automatic Vacuum Feed

Automatic Bag Making And Sealing

Automatic Servo Motor Filling

Output Feeding

PARAMETER

Automatic Multi Land Stick Packing Machine
Model	LD280BP	LD560BP	LD720BP

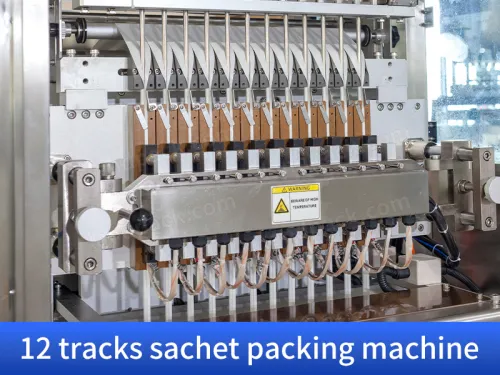

Lane number	4-6Lane	8-12Lane	8-12Lane

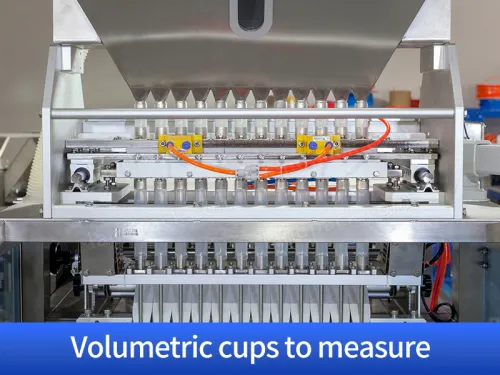

Filling method	1.Vlumetric cup；2.weigher
Capacity	Max.35 cycle/min
Sachet size	L:50-180mm;W:17-30mm
Film weight&thickness	Max.280mm,0.007-0.10mm	Max.560mm,0.07-0.10mm	Max.720mm,0.07-0.10mm
Sealing type	Back sealing/stick bag
Cutting type	1.straight cutting;2.zig zag cutting;3.round cutting
Air&power	0.8Mpa 0.8m3/min;3.5kw	0.8Mpa 0.8m3/min;5.5kw
Dimension&weight	13859182005mm;350kg	168513002005mm；550kg
