Applications

Automatic Sugar Salt Packaging Machine Vertical Form Filling Sealing Machine

Application:

Apply to pack bulk grain, slice, short bar material products such as salt, sugar, oatmeal, jerky, cereal oats, puffy food, popcorn, shrimp chip, rice, sunflower seed, peanut, beans, nuts, pistachio, peas, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

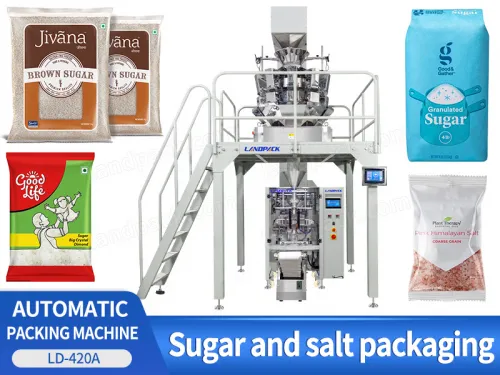

Automatic Sugar Salt Packaging Machine Vertical Form Filling Sealing Machine

FEATURES

1. The machine is multi-function, matching with the adjustable weigher.

2. Mesure at high accuracy: The weigher weight of the material.

3. Double servo, fast packaging speed.

Automatic Vertical Oatmeal Grain Form Filling Sealing Packaging Machine

WORKFLOW

Z-type material conveyor

10 heads weigher and packing

Form and seal the bag

Output the finished product

PARAMETER

Automatic Granule Vertical Packing Machine
Model	LD-420A	LD-520A	LD-620A	LD-720A
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Pakaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30bag/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW
Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)
