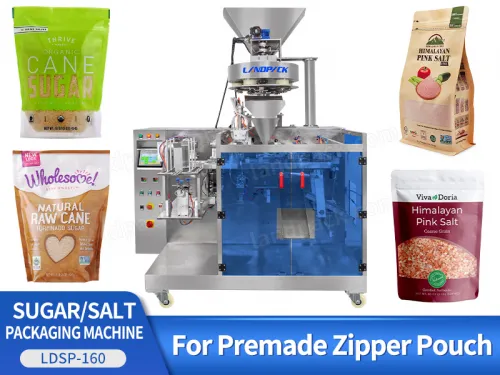

Low Cost Sugar And Salt Premade Pouch Doypack Packing Machine

Application:

Low cost sugar and salt premade pouch doypack packing machine (LDSP-160C), It is suitable for the packing of various fine particles, such as edible salt, mineral salt, sea salt, sugar, brown sugar, monosodium glutamate, rice, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Low Cost Sugar And Salt Premade Pouch Doypack Packing Machine

FEATURES

1. The metering and packaging system consists of a horizontal bag-feeding packaging machine, an rotating the measuring cup, the measurement is accurate and the price is cheap.

2. The bag placing slot is convenient and simple to place the bag, equipped with an automatic bag pressing device;

3. Equipped with imported pressure sensing device to achieve the effect of no blanking and no sealing, saving packaging bags;

4. Adopting color touch screen, simple operation and multifunctional design; PLC and screen control, simple operation and stable operation

5. The machine adopts the appearance of stainless 304L, and the carbon steel frame part and some accessories are processed with acid-resistant, salt-resistant and anticorrosive treatment layer.

6. Material selection requirements: Most of the accessories are formed by mold production, and the main materials are 304 stainless steel and alumina.

7. Various coding, coding, exhaust, and punching systems are optional;

Low Cost Sugar And Salt Premade Pouch Doypack Packing Machine

WORKFLOW

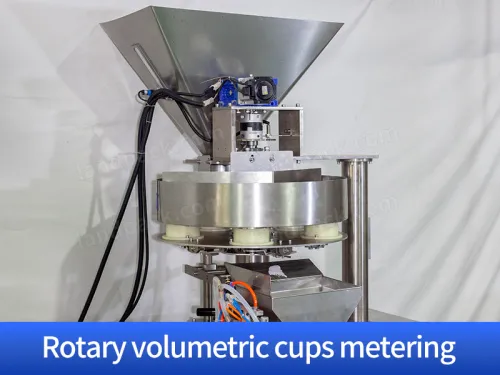

Automatica Rotary Volumetric Cups Metering

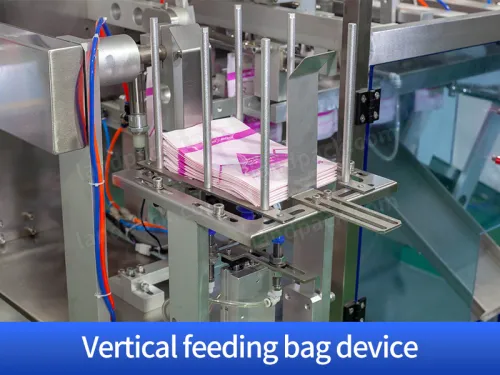

Automatic Vertical Feeding Bag

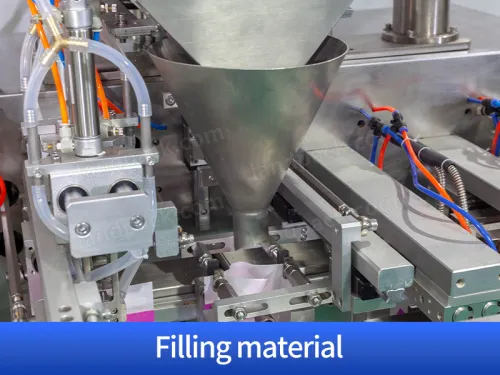

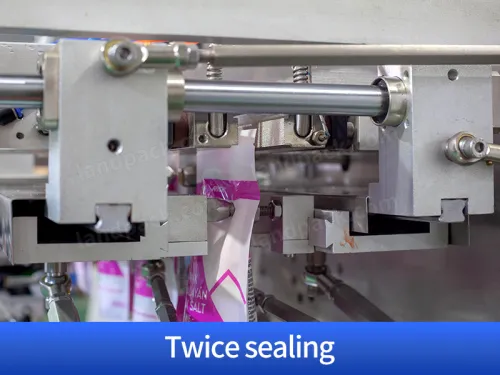

Automatic Filling and Saeling

Output

PARAMETER

Horizontal Premade Pouch Packing Machine
Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	25-50bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling
Collocation	Screw metering,screw elevator
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
