Introduction:
It is suitable for filling viscous liquid into standing bags, pre-made bags, and zipper bag packaging, such as ketchup, chili sauce, syrup, pizza sauce, hand sanitizer,mayonnaise, peanut butter, tartar sauce, chocolate sauce, cream, liquid butter, shampoo etc.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
It is suitable for filling viscous liquid into standing bags, pre-made bags, and zipper bag packaging, such as ketchup, chili sauce, syrup, pizza sauce, hand sanitizer,mayonnaise, peanut butter, tartar sauce, chocolate sauce, cream, liquid butter, shampoo etc.
FEATURES
1. A type of premade bag packaging machine.
2. The horizontal bag feeding machine occupies a small area and is low in cost. Compared with the bag feeding machine accessory cam, the transmission part is easier and can be easily replaced.
3. The whole machine is shipped. Basically, after receiving it, you can connect it online and use it.
4. The machine can be equipped with different metering systems, such as weighers, liquid pumps, auger fillers, and bucket chains, to handle diverse product filling and packaging needs for premade bags.
5. Modular heating, temperature control more accurate, heating fault have alarm prompt.
6. Machine use preformed bags & packaging design is perfect & good sealing quality to improve the quaity and grade of the product.
WORKFLOW

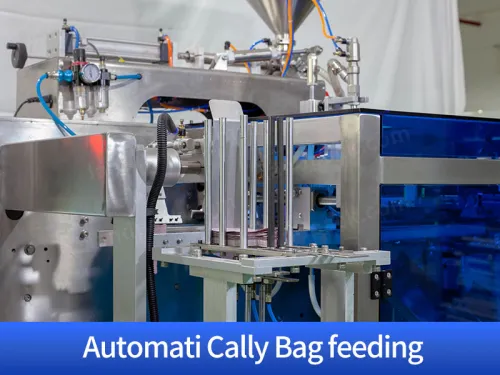

Pouch Loading
Pouch Picking
Pouch Opening

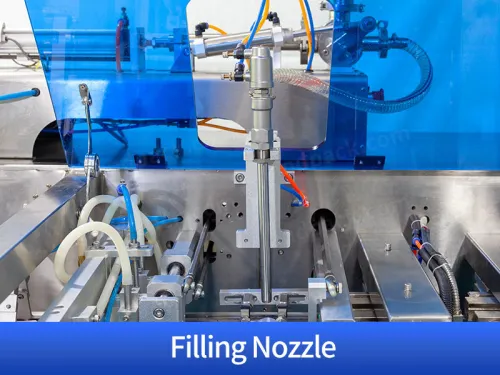

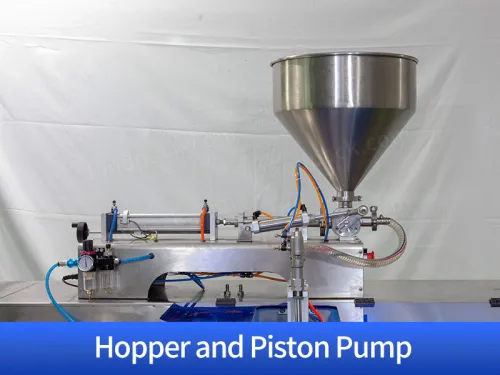

Liquid Filling

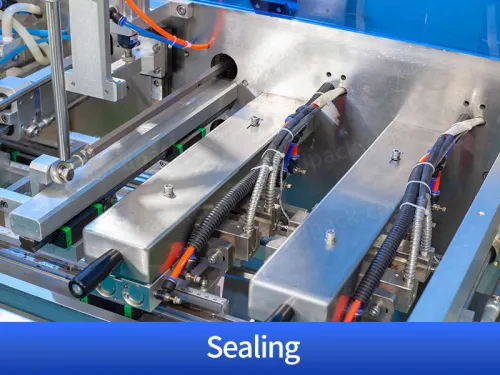

Sealing
PARAMETER
Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 | |||
Bag Type | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc. | ||||||
Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm(L*W) | 100-260mm/110-320mm(L*W) | |||
Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg | |||
Packing Speed | 20-45bags/min(speed is determined | 25-50bags/min(speed is determined | 20-50bags/min (speed is determined | 20-50bags/min (speed is determined | |||
by the product filling quantity) | by the product filling quantity) | by the product filling quantity) | by the product filling quantity) | ||||
Machine weight | 800KG | 800KG | 900KG | 1000KG | |||
Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW | |||
Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | ||||||
Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | ||||
Collocation | Screw metering,screw elevator | ||||||
