Syrup Liquid Packing Filling Machine / Line

Home > Applications > Liquid Filling Machine / Line > Syrup Liquid Packing Filling Machine / Line > Automatic Pharmaceutical Syrup Liquid Bottle Filling Machine With 10 Filling Nozzles

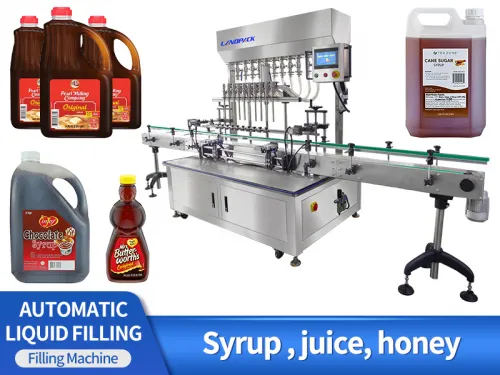

Automatic Pharmaceutical Syrup Liquid Bottle Filling Machine With 10 Filling Nozzles

Introduction:

Automatic Pharmaceutical Syrup Liquid Bottle Filling Machine With 10 Filling Nozzles is suitable for liquid material: syrup, shampoo, mayonnaise, ketchup, tomato sauce, cream, jam, peanut butter, pizza sauce, honey, paste, oil, hand sanitizer, laundry detergent, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

Automatic Pharmaceutical Syrup Liquid Bottle Filling Machine With 10 Filling Nozzles is suitable for liquid material: syrup, shampoo, mayonnaise, ketchup, tomato sauce, cream, jam, peanut butter, pizza sauce, honey, paste, oil, hand sanitizer, laundry detergent, etc.

Automatic Pharmaceutical Syrup Liquid Bottle Filling Machine With 10 Filling Nozzles

FEATURES

Simple operation, a wide range of applicable products, meet the needs of start-ups, and cost-effectiveness.

It can be operated by a single machine and connected to the back-end packaging line in the later stage to realize the need for a fully automatic filling line.

Anasonic PLC, stable system, excellent performance, with the function of no bottle no feeding.

It is widely used for food and beverage industry, chemical industry, cosmetic industry, pharmaceutical industry, and etc.

Automatic Pharmaceutical Syrup Liquid Bottle Filling Machine With 10 Filling Nozzles

Automatic Pharmaceutical Syrup Liquid Bottle Filling Machine With 10 Filling Nozzles

WORKFLOW

01

Empty Bottle Feeding

02

Piston Filling

03

Output

PARAMETER

Automatic Pharmaceutical Syrup Liquid Bottle Filling Machine With 10 Filling NozzlesTen Heads Piston Pump Liquid Filling Machine
ModelLFZ-04LFZ-06LFZ-08LFZ-10
Filling Range50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)50-1000ml (customizable)
Production Speed<15-25 bottles/min <20-35 bottles/min <30-40 bottles/min <40-50 bottles/min
Measurement Accuracy±1%±1%±1%±1%
Power2KW2.5KW3.5KW5KW
Voltage220V, 50Hz220V, 50Hz220V, 50Hz220V, 50Hz
Air consumption0.6-8Mpa0.6-8Mpa0.6-8Mpa0.6-8Mpa
Weight600kg650kg800kg800kg
DimensionL4000*W1320*H2090(mm)L4000*W1320*H2090(mm)L4000*W1320*H2090(mm)L4000*W1320*H2090(mm)

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
