Automatic Syrup Bottle Washing Filling Capping Labeling Machine Liquid Bottling Filling Line

Introduction:

This Automatic bottle washing filling capping procession line is adopts flip-type water washing and blowing integrate machine, the filling machine adopts 6 heads piston pump device, fast speed and high filling precision, with high speed capping machine by servo motor control. efficient and stable.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This Liquid Bottling Filling Line is suitable for filling viscous liquid material, such as syurp, ketchup, oyster sauce, jam, juice, drink, whisky, chilli sauce and so on.

Automatic Syrup Bottle Washing Filling Capping Labeling Machine Liquid Bottling Filling Line

FEATURES

1. Unscramble bottle device(round/square bottle suitable)

2. Flip-type bottle water washing and blowing machine

3. High precision piston pump filling device

4. Auger track and rotary table to fix bottle base

5. Vibration cap feeder device and place cap automatically

6. High speed capping machine

Automatic Syrup Bottle Washing Filling Capping Labeling Machine Liquid Bottling Filling Line

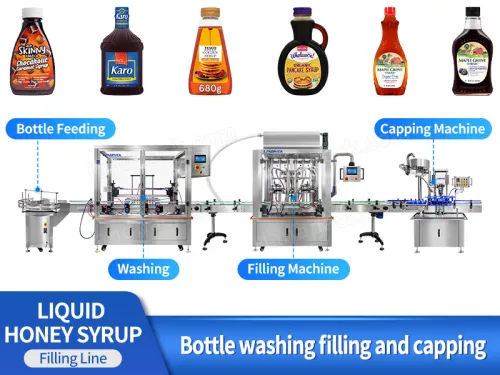

WORKFLOW

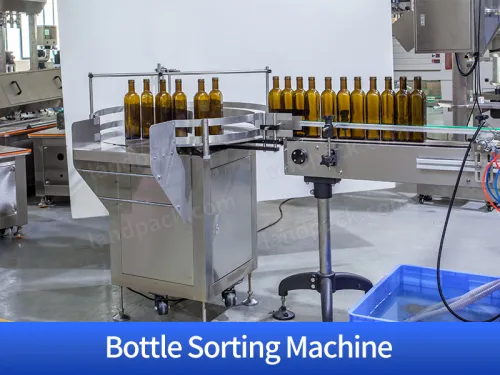

Automatic Bottle Feeder

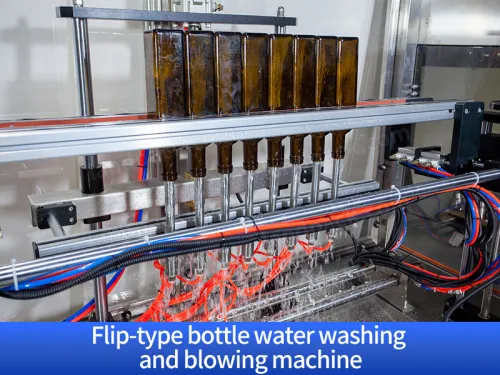

Flip-Type Bottle Water Washing And Blowing

Automatic Bottle Filling

Automatic Bottle Capping

PARAMETER

			Automatic bottle washing machine
			Machine Model	LD-LP600W
			Power Supply	220V/110V, 50-60Hz, 200W
			Turntable Diameter	800mm（Could be customized）
			Suitable Bottle Diameter	20-100mm
			Suitable Bottle Height	30-320mm
			Working Speed	20-50bottles/min(（Could be customized）)
			Package Size	123012101260mm
			Gross Weight	880kg

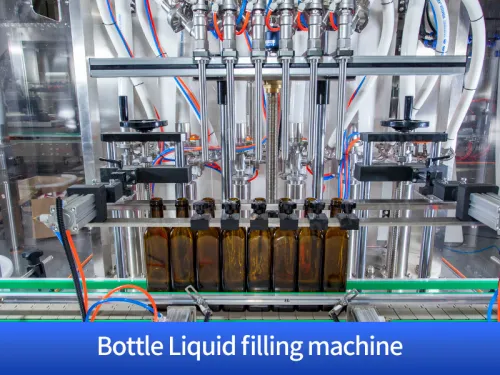

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

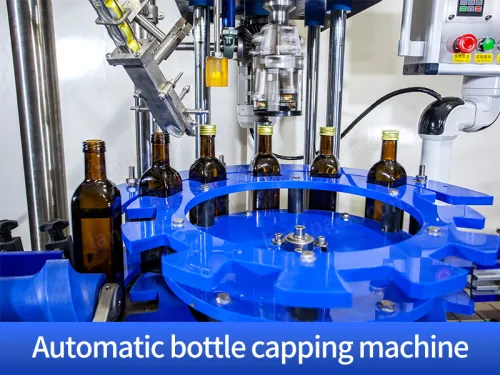

			Automatic bottle capping machine
			Machine Model	LD-LP440Z
			Power Supply	110/220V 50-60HZ 1KW
			Capacity	1000bph
			Suitable cap size	φ25-38mm（Could be customized）
			Suitable bottle height	About 150-320mm
			Machine size	About 355017002250mm
			Package size	About 172016002380mm
			Package weight	680kg
