Automatic Tracking Type Syrup Filling Line With Capping And Labeling Machine

Application:

The packing line is mainly suitable for packing all kinds of liquid, fluid and paste material, such as syrup, hand sanitizer, ketchup, detergent, edible oil, sauce, juice, jam, detergent, automobile oil, glass water, shower gel, shampoo, body lotion, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

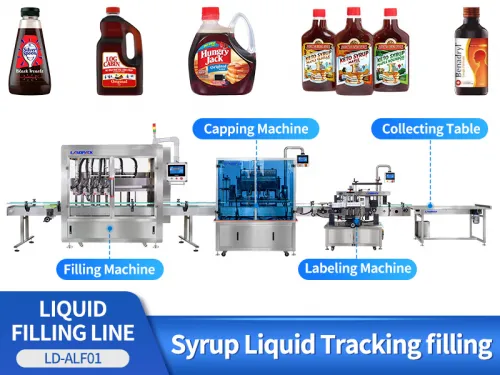

Automatic Tracking Type Syrup Filling Line With Capping And Labeling Machine

FEATURES

It is made of electrical components of internationally famous brands.

1. No filling if there is no bottle, no filling if the bottle is falling;

2. Achieve one-click adjustment and can store 40 formulas;

3. Make sure to clean everywhere, particularly those areas out of sight.

4. The submersible filling function can be configured to prevent bubbles during the filling process;

5. The filling accuracy is high, and the vacuum suction device can be configured to achieve equal liquid-level filling;

6. Compared with linear filling, tracking filling is twice as fast.

Automatic Tracking Type Syrup Filling Line With Capping And Labeling Machine

WORKFLOW

Diaphragm Pump Feeding for detergent liquid

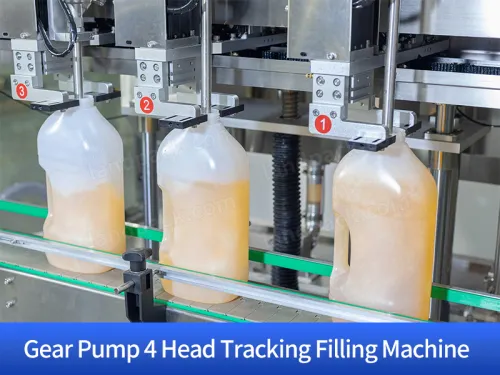

Gear Pump 4 Head Tracking Filling Machine

Gear Pump Filling Max 5 liters

Filling with Bottom to Up Design

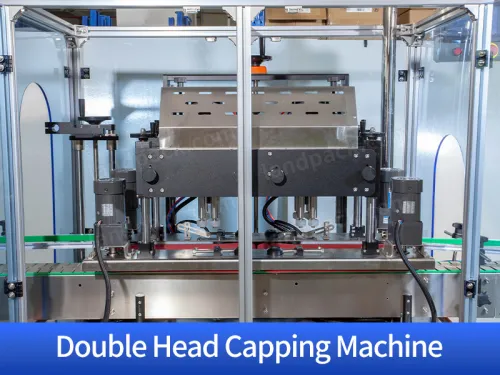

Double Head Capping Machine

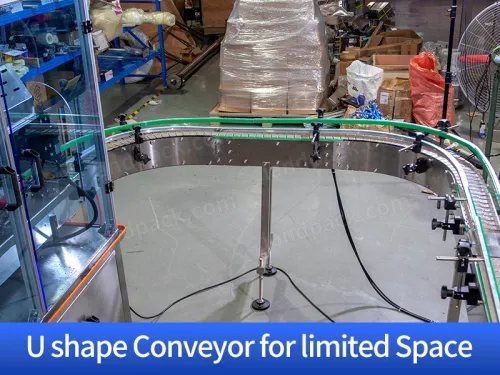

U shape Conveyor for limited Space

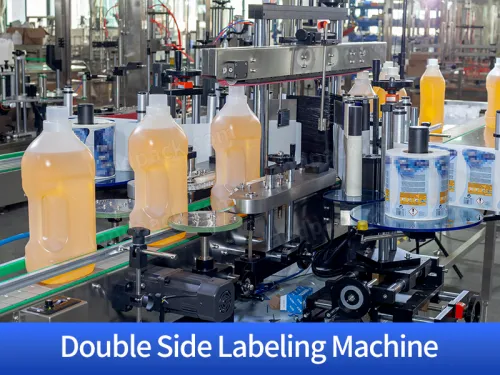

Double Side Labeling Machine

Finished Bottle Collector

PARAMETER

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

			Double-head four-wheel capping machine
			Speed	0-100pcs/Min
			Cap Type	Screw cap
			Bottle Diameter	30-110mm
			Bottle Height	50-250mm
			Cap Diameter	18-80mm
			Power	5KW
			Air Pressure	0.6-0.8Mpa
			Voltage	220V/380V, 50Hz/60Hz
			Weight	1000KG
			Dimension	2600mm1200mm 2050mm

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
