High Speed Pharma Syrup Spout Pouch Filling Capping And Packing Machine

Introduction:

High Speed Pharma Syrup Spout Pouch Filling Capping And Packing Machine, it is widely used for a variety of products, such as syrup, milk, butter, fruit juices, paste, chemical liquid, water and so on.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

High Speed Pharma Syrup Spout Pouch Filling Capping And Packing Machine

FEATURES

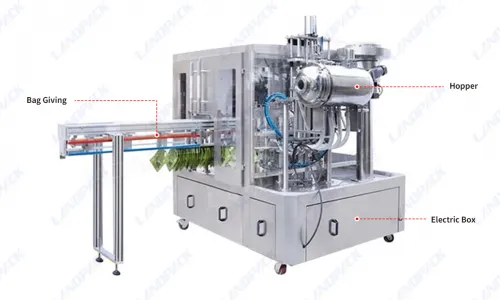

1. The Landpack standup pouch filling and capping machine is an automatic, high-speed production line that handles the entire process—from pouch dispensing, filling, capping, to sealing—fully automatically.

2. The machine incorporates both domestic and international brand-name electrical and pneumatic components, ensuring stable performance and a long service life.

3. Key mechanical parts are manufactured using advanced precision machining centers, resulting in smooth operation, high quality, and reliable performance.

4. The machine features a new, energy-efficient design with a well-structured, aesthetically pleasing appearance. Made from acid-resistant stainless steel, each section operates independently, meeting hygienic standards and allowing for easy maintenance, making it an ideal automated production line for standup pouch products.

High Speed Pharma Syrup Spout Pouch Filling Capping And Packing Machine

WORKFLOW

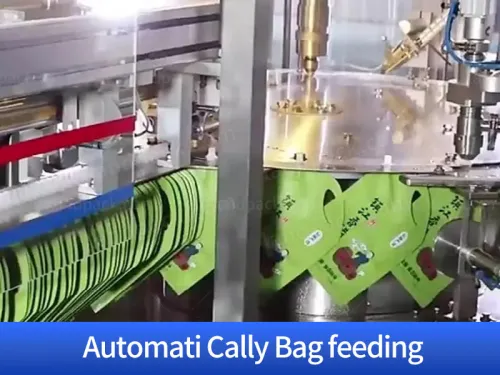

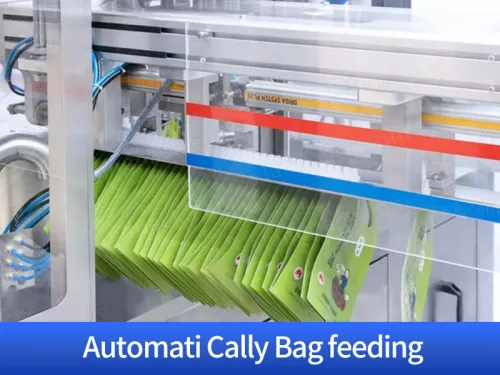

Pouch Loading

Pouch Picking

Pouch Opening

Liquid Filling

Capping

PARAMETER

Syrup Spout Pouch Filling Capping Machine
Model	LDS-25	LDS-4S	LDS-6S
Filling nozzles	2	4	6
Capping heads	2	4	6
Bag type	Pouch with spout and cap
Filling material	liquids, paste, oil, juice etc material that get ability to flow.
Filling range	10-350 ml
Capacity (for 250g filling)	1500-2000BPH	3500-4000BPH	4500-6000BPH
Power supply	AC 220V/380V 50/60Hz (can be customized based on different voltages)
Weight	900kg	1100kg	1200kg
