Applications

High Speed Syrup Sachet Packing Machine Multi Tracks Liquid Sachet Packaging Machine

Introduction:

This equipment is designed for a diverse range of liquid items, including syrups, chili sauces, chutneys, bean pastes, instant noodle sauces, ketchup, various pastes, honey, creams, milk, butter, water, oils, vinegars, liquid seasonings, and shampoos, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

High Speed Syrup Sachet Packing Machine Multi Tracks Liquid Sachet Packaging Machine

FEATURES

1. Multi lanes machines can produce multi lanes bags at the same time.

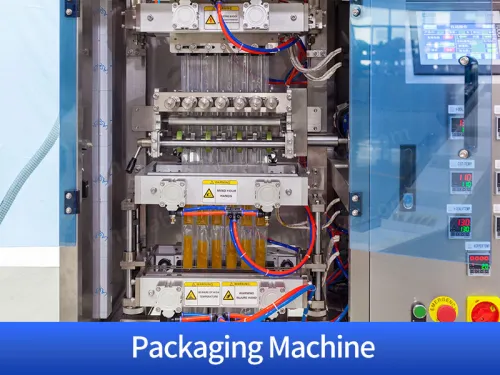

2. Machine main function: automatic split film at the right position, liquid measuring, and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity.

3. Other functions: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step, etc.

4. High-precision photocell sensor for auto-tracking the eye mark printing on the film roll, so cut each bag at a precise position.

5. The appearance of the machine conforms to the European and American markets, and the body is stable (the whole machine).

High Speed Syrup Sachet Packing Machine Multi Tracks Liquid Sachet Packaging Machine

WORKFLOW

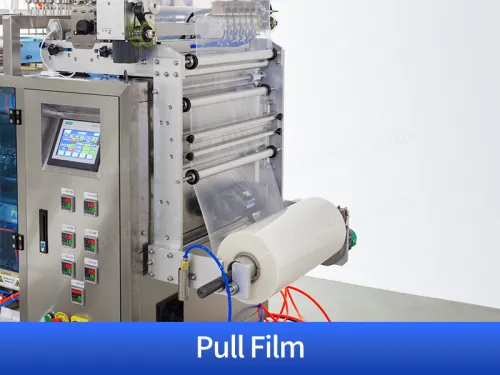

Film Unwinding

Film Slitting

Bag Formation

Liquid Filling

Sealing

Cutting

PARAMETER

Multi-Lane Pesticide Packaging Machines Parameter
Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1. Piston pump; 2. Peristaltic Pump
Capacity	Max.40 cycles/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8m³/min, 2.8kw	0.8 mpa, 0.8m³/min, 4.1kw	0.8 mpa, 0.8m³/min, 5.5kw
DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg
