Applications

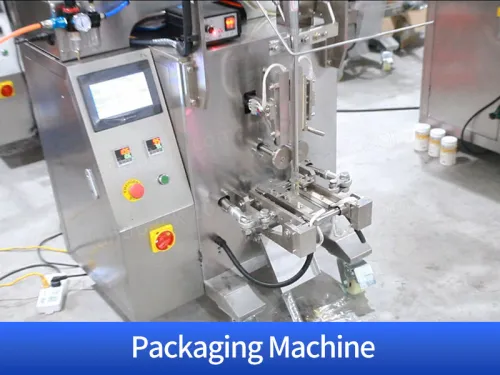

Semi Automatic Syrup Vertical Form Fill Seal Machine Single Lane Sachet Packing Machine

Introduction:

This syrup vertical form fill seal machine can fill various liquids, it is the ideal choice for packing syrup, paste, ketchup, drinks, cosmetics products, cream, sause or skin care products. Automated packaging can help you reduce labor costs and errors, and improve working efficiency and production quality.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Semi Automatic Syrup Vertical Form Fill Seal Machine Single Lane Sachet Packing Machine

FEATURES

1. Stainless steel hopper, heating/stirring.

2. Food grade high temperature durable tube.

3. The connecting bag device can freely set the number of connecting bags.

Semi Automatic Syrup Vertical Form Fill Seal Machine Single Lane Sachet Packing Machine

WORKFLOW

Automatic Film Roll Making

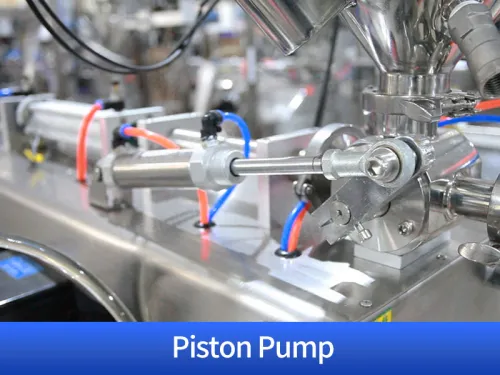

Automatic Liquid Filling

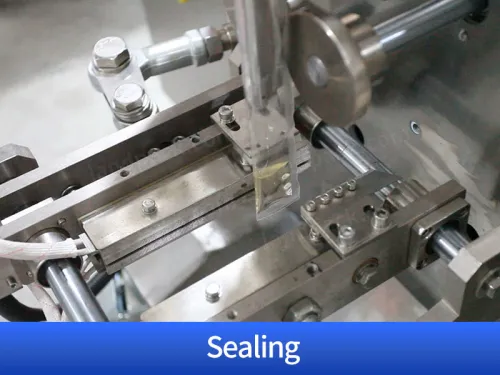

Automatic Sealing And Cutting

PARAMETER

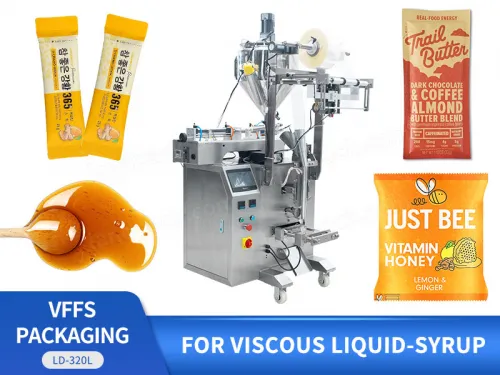

Syrup Vertical Vffs Packing Machine
Model	LD-320L	LD-380L
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg
