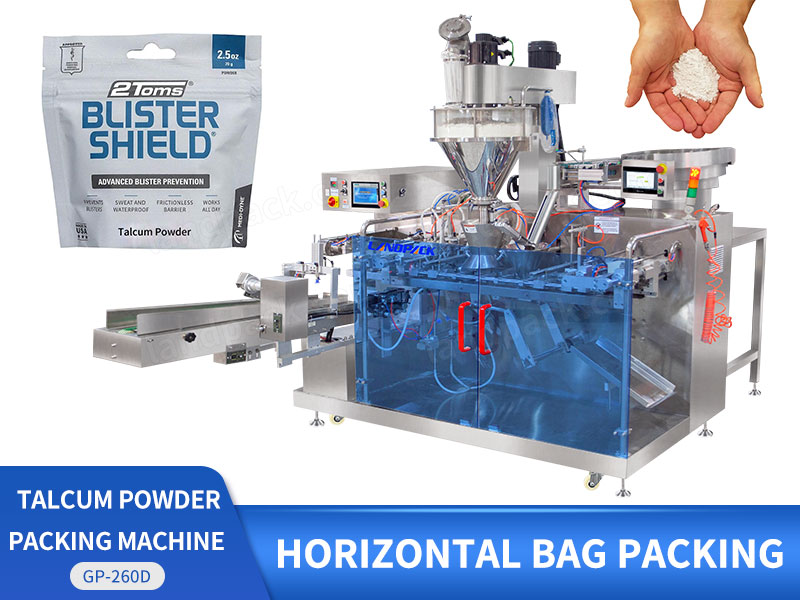

Automatic Standing Pouch Packaging Machine For Talcum Powder Premade Pouch Packing Machine

Introduction:

This automatic doypack packing machine with auger filler is customized for differernt kinds of powder products like talcum powder,coffee powder, milk powder, protein powder, spices powder, medical powder, chemical powder ect. metering, filling, sealing and packing into premade bags.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Spice Powder Horizontal Premade Zipper Stand Up Gusset Pouch Packing Machine

FEATURES

1.Different machine models available to meet a wide range premade bag size.

2.Customized main machine structure for various kinds of bag shapes.like doypack zipper bag ,4 side seal bag,strand up bag and irregular bag,ect.

3.Multiple working station to meet fullautomatic process of bag pickup,date printing,bag opening, filling, bag arranging ,sealing and output.

4.With upgrade PLC control system，machine is easy for operation on touch screen of parameter setting.

5.Machine can equipment with different metering system like weigher,liquid pump,auger filler,bucket chain for different kinds of product filling and packing in premade bag.

Automatic Milk Powder Horizontal Premade Zipper Stand Up Gusset Pouch Packing Machine

WORKFLOW

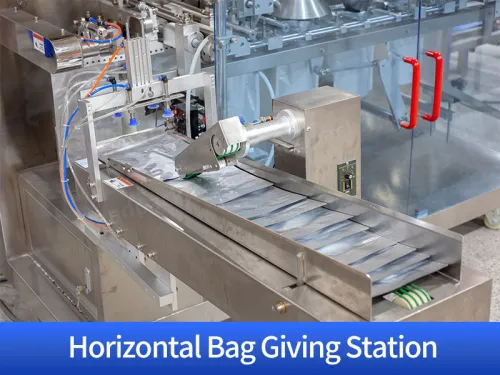

Feeding the zipper doypacks

Picking the bags and coding

Opening the zip bags

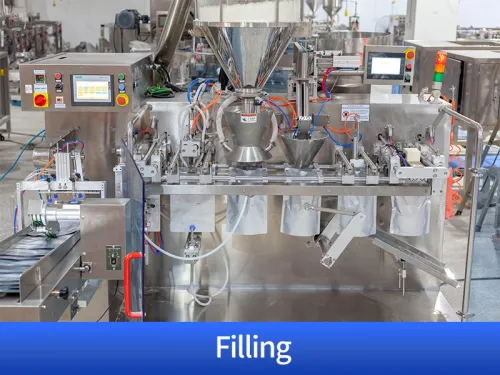

Auger screws filling with dust cleaning

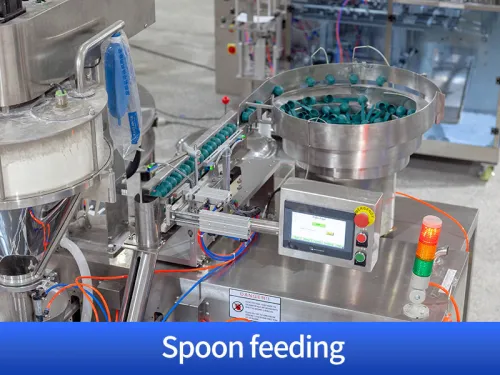

Spoon feeding

Arranging

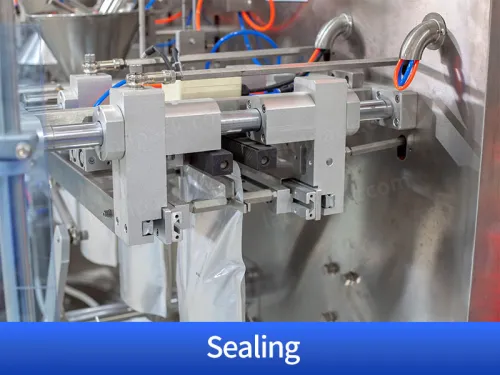

Sealing

PARAMETER

Automatic Powder Horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
