Automatic Talcum Powder 3 Heads Filling Capping Machine Production Line

Introduction:

It is ideal for products such as talcum powder, milk powder, coffee powder, baby powder, tea powder, protein powder, grain powder, milk powder, chili powder, spice powder, and more, ensuring consistent, high-quality packaging for various industries.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This powder filling line is primarily designed for filling a wide range of powder materials into bottles with precision and efficiency. It is ideal for products such as talcum powder, milk powder, coffee powder, baby powder, tea powder, protein powder, grain powder, milk powder, chili powder, spice powder, and more, ensuring consistent, high-quality packaging for various industries.

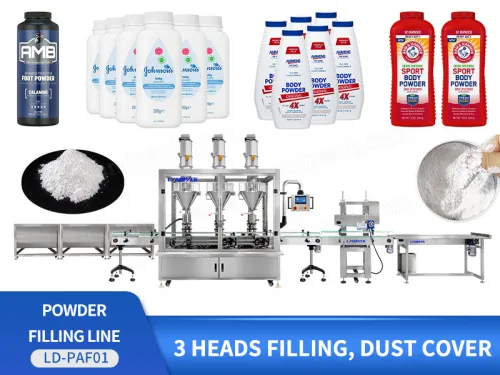

Automatic Talcum Powder 3 Heads Filling Capping Machine Production Line

FEATURES

1.The solution seamlessly integrates all processes, including feeding, weighing, filling, servo capping, sealing, and labeling, for a fully automated production line.

2.Delivers rapid performance while maintaining stability throughout the entire packaging process, enhancing overall production efficiency.

3.The vacuum feeder efficiently transports powder to the filling machine, reducing the required floor space while maintaining smooth material handling.

4.Equipped with a servo-driven capping machine that allows for precise torque control, ensuring secure and reliable seals on every bottle.

5.Specifications can be quickly adjusted, and filling volumes can be modified directly via the touchscreen interface, offering easy customization.

6.The system is designed for easy changeover between different bottle sizes and product types, minimizing downtime and optimizing production

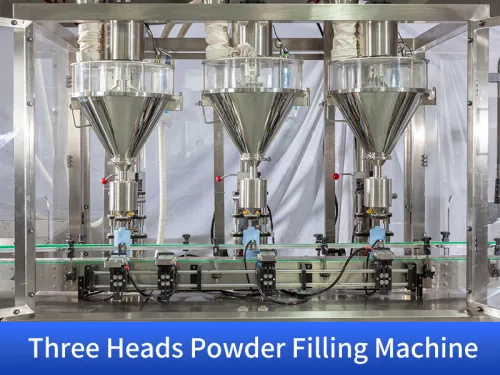

7.A three-head powder filling machine featuring a servo-controlled auger system, ensuring exceptional accuracy in filling powders and granular materials.

8.Equipped with an advanced photoelectric sensor, the system ensures that the filling, capping, and labeling processes are only triggered when bottles are properly positioned.

Automatic Talcum Powder 3 Heads Filling Capping Machine Production Line

WORKFLOW

Powder mixing tank

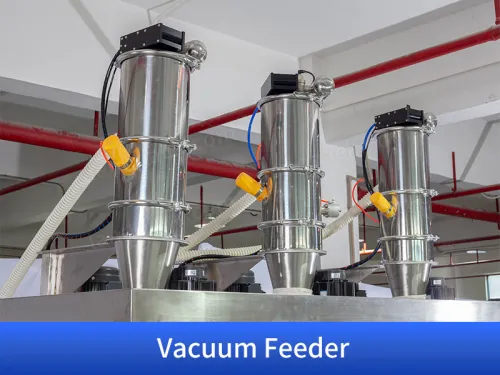

Talcum powder vacuum feeder

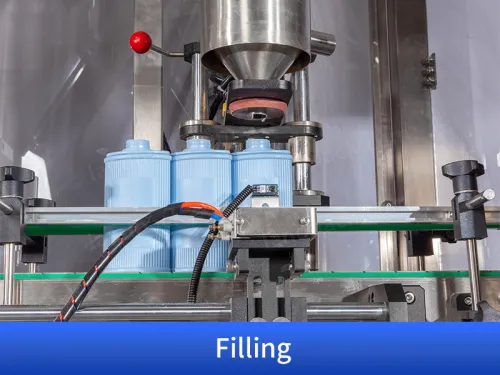

Talcum powder Filling

Cap feeder by hand

Press capping machine

Collecting table

PARAMETER

			Automatic powder weighing filling machine
			Model	LD-PAF01
			Filling Range	10-5000g (Customizable)
			Filling Speed	20-40 bottles/min
			Measurement accuracy	±1%
			Power	5 KW
			Working power supply	220V,50Hz
			Working pressure	0.6-0.8MPa
			Weight	500kg
			Size	L11782W3465.09H2523.52(mm)
