Automatic Talcum Powder Doypack Premade Bag Mixing Filling Sealing Machine

Introduction:

This rotary powder pouch packing machine is widely used for packing fine dry powder materials, such as tulcum powder, coffee powder, milk powder, spices powder, corn flour, laundry powder, coconut powder, washing powder, collagen protein powder, cocoa powder, chili powder, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Talcum Powder Doypack Premade Bag Mixing Filling Sealing Machine

FEATURES

1. Use free oil vacuum pump, avoid polluting the environment in the production.

2. PLC adjust bag width clamping: Only needs 2mins by auto PLC for adjust different bag width sizes.

3. It can stock ten group parameters, simple to change variety.

4. Independent temperature control system, precision can reach ±1℃.

5. Can automatically finish product weighing, filling, packing, sealing, and printing date in one.

6. Quiet work circumstances quiet, low noise.

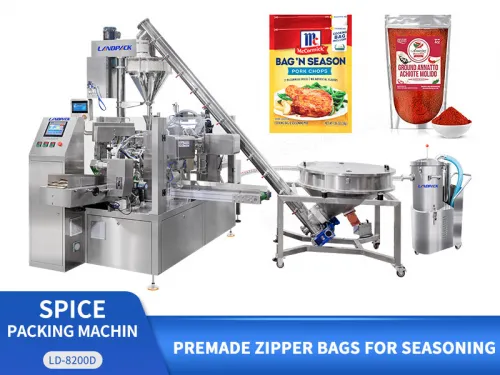

Automatic Spices Seasoning Doypack Premade Bag Mixing Filling Sealing Machine

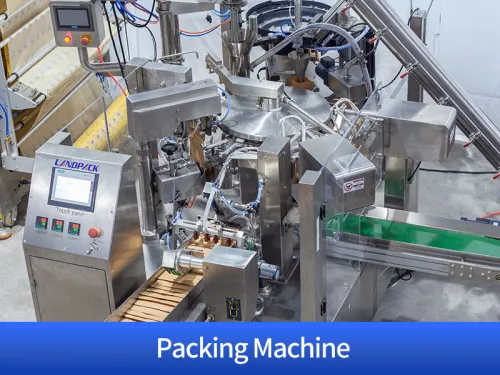

WORKFLOW

Powder Screw Feeder

Feeding the Premade Pouch

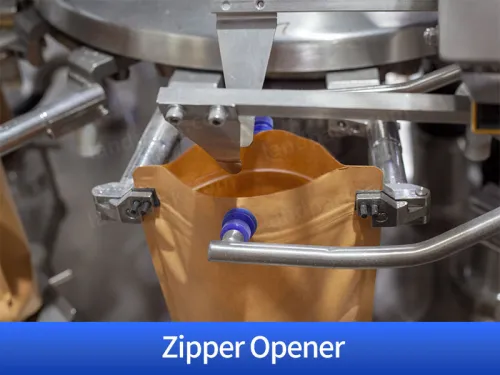

Opening the Premade Pouch

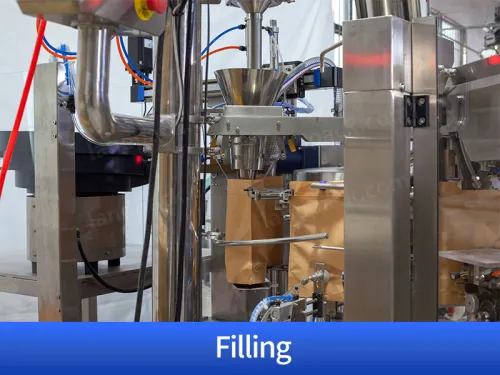

Automatic Filling

Automatic Spoon

Automatic Premade Pouch Sealling

Finish Product Outing

PARAMETER

	Automatic Powder Doypack Packing Machine
	Model	LD-8200
	Bag Size	L: 120~550 mm
	Bag Size	W: 80~400 mm
	Filling Range	10~3000g
	Packing Speed	30~50 bags/min
	Air Consmption	≤ 0.6m³/min
	Machine Voltage	220V/380V , 50/60Hz
	Total Power	2.8 KW
	Machine Size	245018801900 mm
	Machine Weight	750 KG
