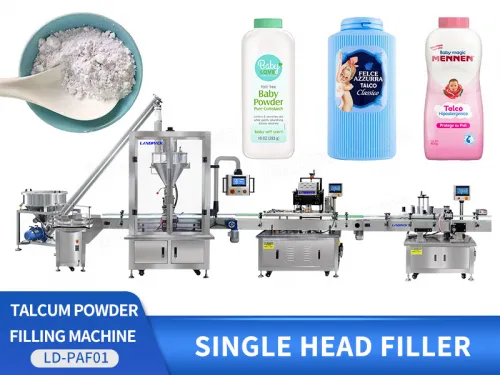

Automatic Talcum Powder Filling Capping Labeling Machine Line

Introduction:

This versatile powder filling system is engineered for accurate and measured dispensing of fine powders and micro-particles, catering to a wide range of materials such as talcum powder, baby powder, chemical agents, food seasonings, milk powder, pesticides, veterinary drugs, and additives.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Talcum Powder Filling Capping Labeling Machine Line

FEATURES

1.Multi-Container Adaptability: Compatible with bottles, cans, and other containers for diverse applications.

2.Stepper Motor Precision: Delivers stable and accurate filling through a precision stepper motor drive.

3.Intuitive Filling Operation: Features photoelectric induction control with an optional foot switch for manual adjustments.

4.Dust Minimization: Optional dust removal motor reduces powder dispersion for a cleaner workspace.

5.Hygienic Stainless Steel Build: SS304 construction for all product-contact parts ensures durability and compliance with hygiene standards.

6.Automated Material Handling: Integrates with a screw conveyor for seamless automatic material supply.

7.Weight Alert System: Alerts operators when filling weight deviates from the preset target.

8.Production Analytics: Tracks and displays daily and monthly production data for efficient monitoring.

9.Flexible Filling Range: Adjustable from 10g to 5000g to meet varying production requirements.

10.High-Speed Efficiency: Fills 20-40 bottles per minute for optimized productivity.

Automatic Talcum Powder Filling Capping Labeling Machine Line

WORKFLOW

230L storage Hopper with Auger Conveyor Feeding the powder

Servo Motor for Measuring the Different Powder Capacity 1-5kg can be customized

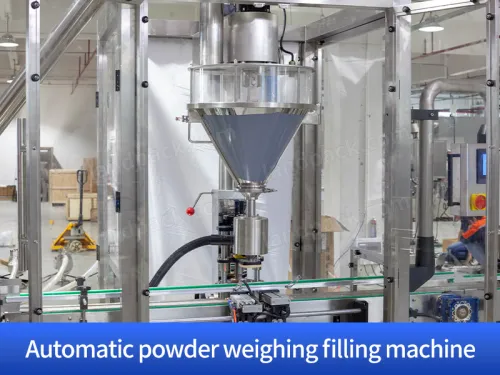

Powder Filling Machine

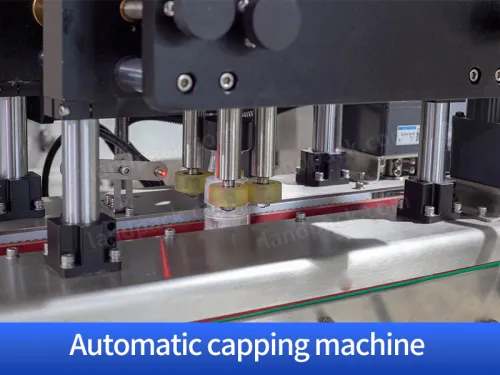

Servo Capping Machine

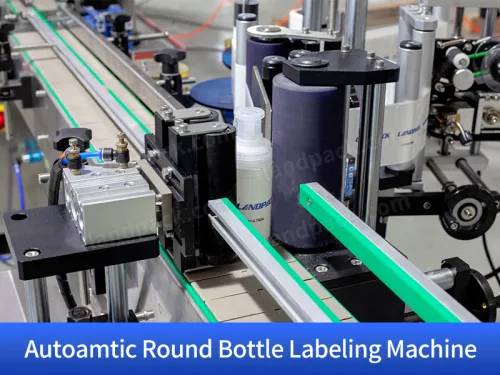

Automatic Labeling Machine

PARAMETER

Automatic powder weighing filling machine
Model	LFP-01（Single Head Powder Filling）	LFP-01（Single Head Powder Filling）	LFPD-50-30（Double Head Powder Filling）
Filling Weight	10-5000g(Replace screw specifications)	10-5000g(Replace screw specifications)	100-2000g
Bottle diameter	Φ30-Φ140mm(Could be customized)	Φ30-Φ140mm(Could be customized)	Φ60-Φ135mm
Bottle Height	50mm-200mm(Could be customized)	50mm-200mm(Could be customized)	601-260mm
Capacity	10-20Bottles/min	20-40Bottles/min	10-25bottles/min
Measure accuracy	≤500g,≤±1%；≥500g,≤±0.5%	≤500g,≤±1%；≥500g,≤±0.5%	100-1000g,≤±2g；≥1000g,≤±5g
Power	2.5KW	5KW	4.5KW
Hopper Capacity	50L	50L	50L，30L
Power	220V,50HZ	220V,50HZ	220V,50HZ
Voltage	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Weight	350kg	550kg	500kg

Capping Machine
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
