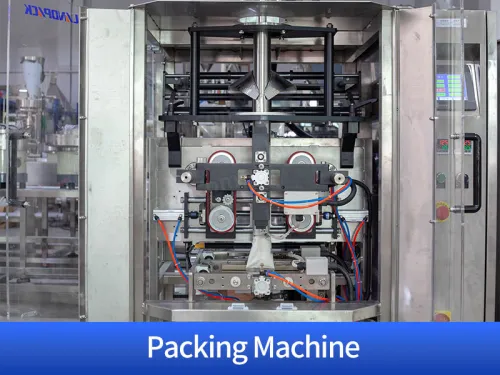

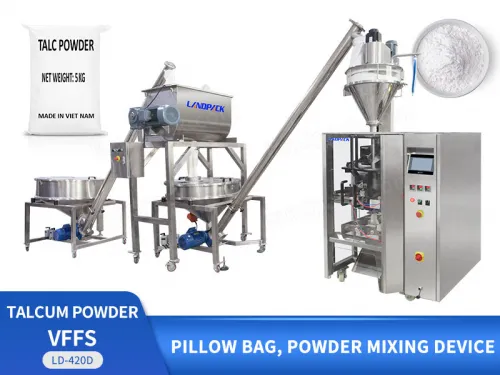

Automatic Talcum Powder Pouch Vertical Form Fill Seal Machine

Introduction:

Suitable for packing fine dry powder materials,such as talcum powder, milk powder, spices powder, coffee powder, corn flour, laundry powder, coconut powder, fruit powder, collagen protein powder, cocoa powder, chilli powder, etc. It integrates metering, bagging, packing, sealing, date printing and counting into one.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Talcum Powder Pouch Vertical Form Fill Seal Machine

FEATURES

1. New design with perfect fashion, more reasonable structure, more advanced technology.

2. Imported PLC control system, colorful touch screen, easy operation, Intuitionistic and efficient.

3. Standard positioning with imported servo film transporting system and mark sensor, superexcellent capability for compele machine, perfect packaging.

4. With auto warning protection function to minimize loss.

5. Various kinds of bag, it could provide the hand hole bag, link bag, etc.

Automatic Talcum Powder Pouch Vertical Form Fill Seal Machine

WORKFLOW

Powder Feeding

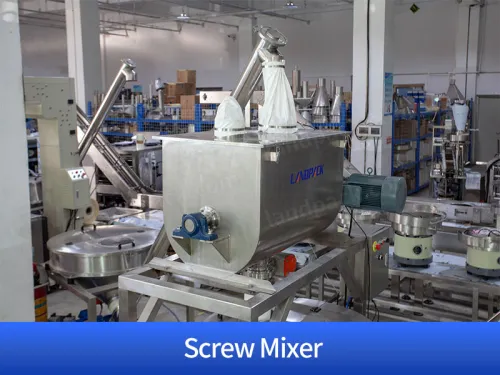

Powder mixing

Secondary powder feeding

Roll film bag making

Automatic Filling

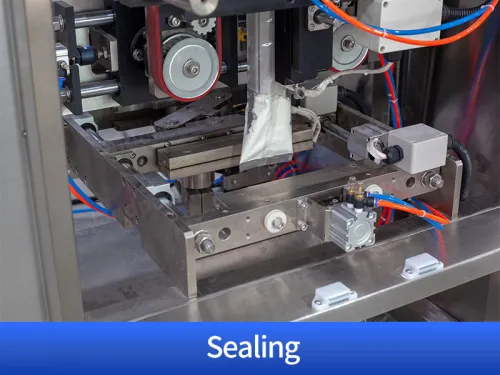

Automatic Sealing

PARAMETER

Automatic Powder Packing Machine
Model	LD-420	LD-520	LD-720	LD-900
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	Max.720mm	Max.900mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L
