Talcum Powder Packing Filling Machine / Line

Home > Applications > Powder Packing Filling Machine Line > Talcum Powder Packing Filling Machine / Line > High accuracy Double Head Can Filling Capping Labeling Machine Line For Talcum Powde

High accuracy Double Head Can Filling Capping Labeling Machine Line For Talcum Powde

Application:
It's suitable for automatic packing talcum powder, detergent powder, washing powder, bleaching powder, coffee powder, spice powder, milk powder, flour, fruits powder, seasoning, chemical medical powder, etc.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Benefits & Features
Technical Parameters

VIDEOS

Application

It's suitable for automatic packing talcum powder, detergent powder, washing powder, bleaching powder, coffee powder, spice powder, milk powder, flour, fruits powder, seasoning, chemical medical powder, etc.


High accuracy Double Head Can Filling Capping Labeling Machine Line For Talcum Powde

FEATURES

1. Powder filling line, the matching is relatively simple, practical, and the price is not expensive.

2. High-speed labeling machine with fast speed and stable performance.

3. Pressing cap speed 50 bottles/min.

4. The filling head is Lande's self-innovated filling nozzle, which can effectively solve the problems of wire drawing and dripping. The filling accuracy is higher.

5. It is simple and convenient to change the specifications and adjust the filling volume directly on the touch screen.

6. The size of the bottle is easy to adjust, and it is equipped with an automatic lifting device.

High accuracy Double Head Can Filling Capping Labeling Machine Line For Talcum Powde

High accuracy Double Head Can Filling Capping Labeling Machine Line For Talcum Powde

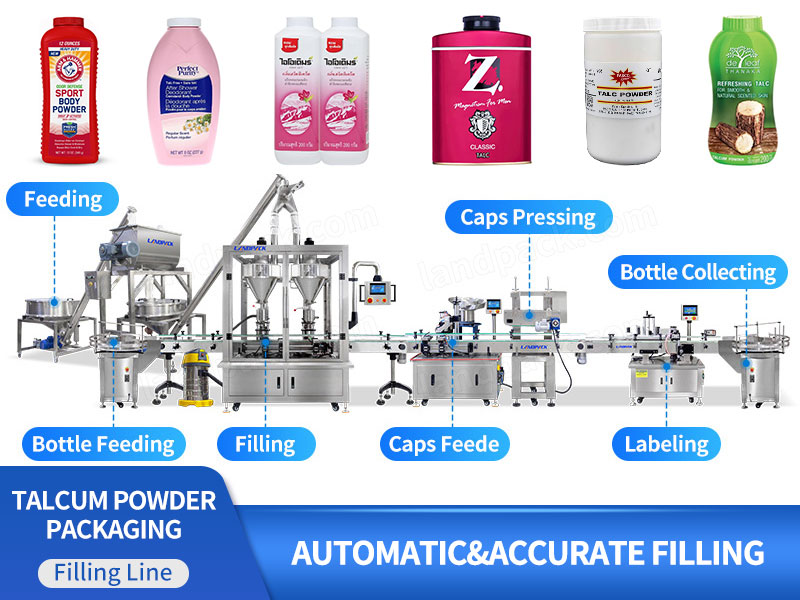

WORKFLOW

01

Automatic Bottle Feeding

02

Automatic Double Heads Powder Filling

03

Automatic Vibratory Bowl

04

Automatic Capping

05

Automatic Caps Pressing

06

Automatic Labeling

PARAMETER

High accuracy Double Head Can Filling Capping Labeling Machine Line For PowderAutomatic bottle feeding
ModelLFL-800
Capacity10rpm
Bottle diameterΦ30-100mm(Could be customized)
Bottle height30-120mm(Could be customized)
Power200W
Voltage220V、50HZ
Weight50kg


High accuracy Double Head Can Filling Capping Labeling Machine Line For PowderDouble heads powder filler
Filling headsDouble screws dosing deviceSingle screws dosing device
Material of NozzleSS304, meet GMP production requirementsSS304, meet GMP production requirements
Material of machineSS304, 1.5mm thicknessSS304, 1.5mm thickness
Filling Speed20-30 Bottle / minute. Can be adjusted to prevent bottle overflow10-20 Bottle / minute. Can be adjusted to prevent bottle overflow
Filling formTwo screw fillerOne screw filler
Filling sensorIncluded,No bottle no fillingIncluded,No bottle no filling
Control methodPLC+Touch screenPLC+Touch screen
Air consumption0.6MPa.0.6MPa.
Dust removal deviceYesYes


High accuracy Double Head Can Filling Capping Labeling Machine Line For PowderVibratory Bowl
MaterialSUS304/AL6061
Material SpecialtyExcellent processing properties, high strength, high hardness
VoltageAC110/220V
Power350W/400W/500W/600W/800W
DirectionClockwise or Counter Clockwise
SpeedBased on Customer's Requirements
Bowl FinishingPolishing or PU coating
ColorBased on Customer's Requirements
Weight50KG ( depends on product)
ServiceSpare parts and Technical support


High accuracy Double Head Can Filling Capping Labeling Machine Line For PowderAutomatic caps feeder
Material of machineSS304
Cover diameterDiameter30-80mm
Min Cover height10mm
Bottle height size100-250mm (Customized is acceptable)
Speed20-25bpm(depends on material and cover size)
Conveyor size(L)3000*(W)114*(H)900mm
Machine size(L)2000*(W)*900*(H)1600mm
Power220V.50HZ,2KW
Control systemPLC+Touch screen
Air consumption0.5-0.7mpa


High accuracy Double Head Can Filling Capping Labeling Machine Line For PowderCaps pressing machine
Machine modelLD-XG1870G
Working voltageAC220V/110V 50-60HZ
Working pressure0.4-0.6 MPa
Bottle height60-270mm
Bottle Caps DiameterCustomized
Working speed20-40 bottles/minute((can be customized))
Conveyor sizeAbout 1780*115mm (L*W)
Machine sizeAbout 1780*580*1140mm (Machine)
Machine weightAbout 83kg+72kg (Machine+Vibratory Bowl)
Package sizeAbout 1220*790*1250mm(Machine)
Package weightAbout 123kg


High accuracy Double Head Can Filling Capping Labeling Machine Line For PowderAutoamtic Labeling Machine
Material of machineSS304+Aluminum alloy
Label Precision±1mm(not contain product and label error)
Label speed20-60 pieces/minute(can be customized)
Suitable product sizeDiameter 25-150mm,H:30-150mm(can be customized)
Label sizeLength:6mm-260mm Width(backing sheet width):10mm-150mm)
Label rollingDiameter within:76mm Exterior Diameter within:300mm
Power supply1.74KW.220V/50HZ
Machine size(L)1980*(W)1500*(H)1400mm
Machine weightN.W190kg.G.W220kg
Power220V.50HZ,2KW
Control systemPLC+Touch screen
Air consumption0.4-0.6mpa

Case Studies

I always turn to LANDPACK Penny every time I need a machine. The powder filling line and liquid filling line and tube filling sealing machine of my new factory are all purchased from Penny. They will customize them according to my products and they are very suitable for my Factory and product needs.
