Automatic Liquid Filling Bottling Capping Labeling Machine for Alcohol Vinegar Soy Sauce

Application:

The bottle filling equipment adopts linear filling, anti-corrosion materials, independent control of electrical cabinets, a unique design, suitable for alcohol, vinegar, soy sauce, edible oil.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

The bottle filling equipment adopts linear filling, anti-corrosion materials, independent control of electrical cabinets, a unique design, suitable for alcohol, vinegar, soy sauce, edible oil.

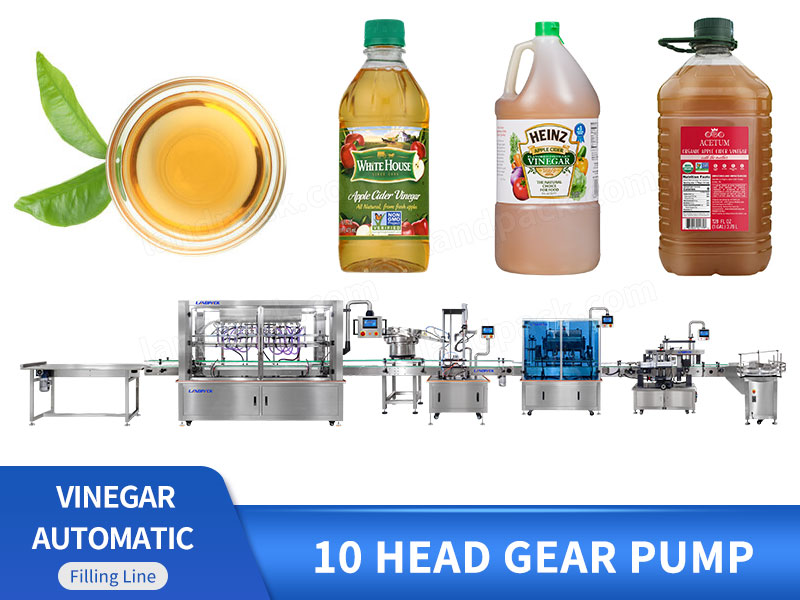

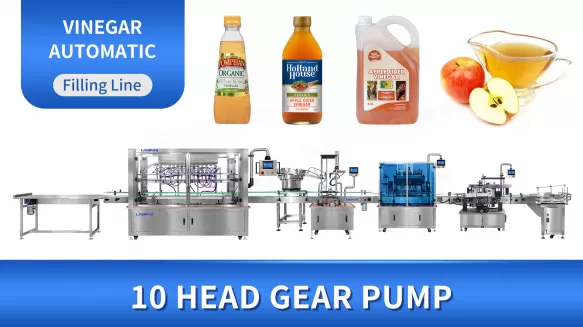

Automatic Liquid Filling Bottling Capping Labeling Machine for Alcohol Vinegar Soy Sauce

FEATURES

1. The filling machine is driven by servo motor with highest filling accuracy, ±0.5%.

2. Filling nozzle is drip-proof type with SS316 material, the filling tube is re-enforce silicon.

3. Filling nozzles with shut off system to prevent dripping with liquid.

4. The complete line can apply multiple samples like the plastic bottle, glass bottle with related caps.

5. The machine can equip the CIP system to achieve cleaning work by one key.

Automatic Liquid Filling Bottling Capping Labeling Machine for Alcohol Vinegar Soy Sauce

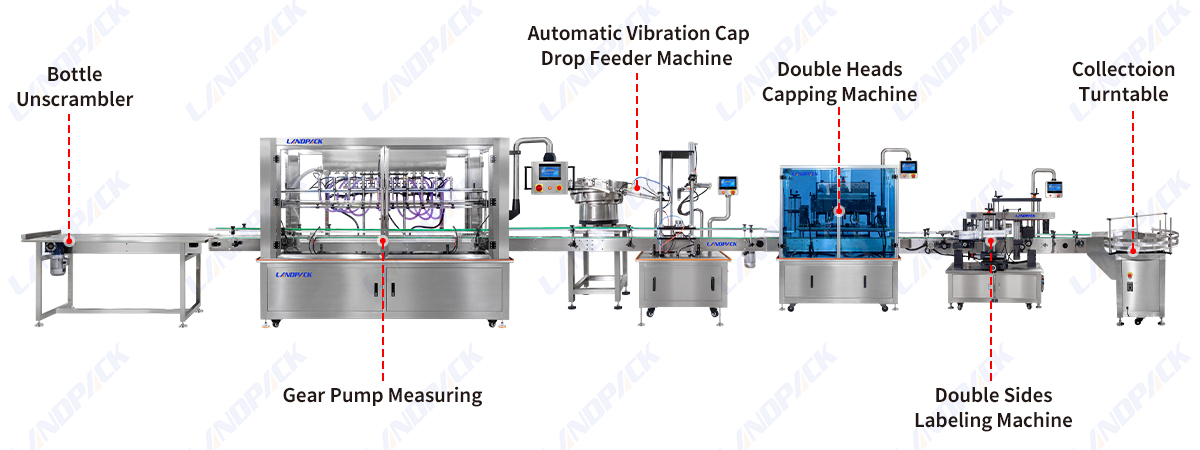

WORKFLOW

Empty Bottle Feeding

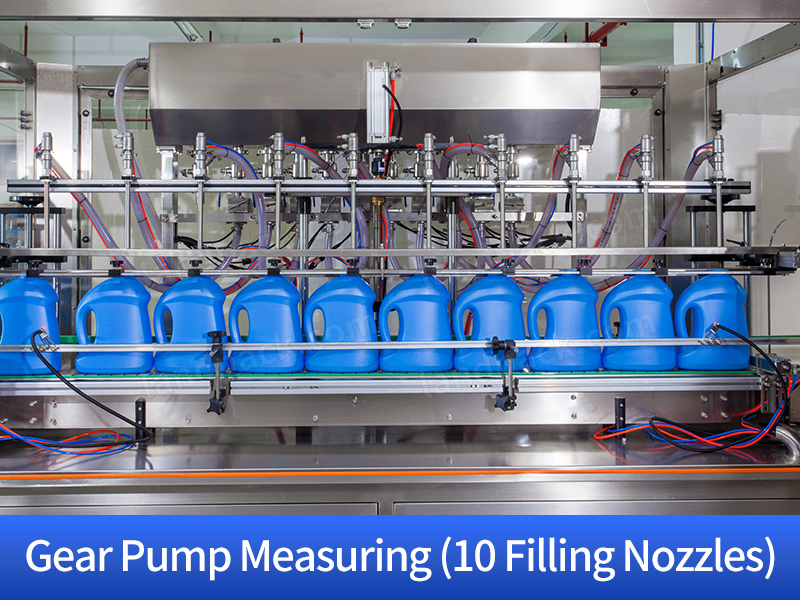

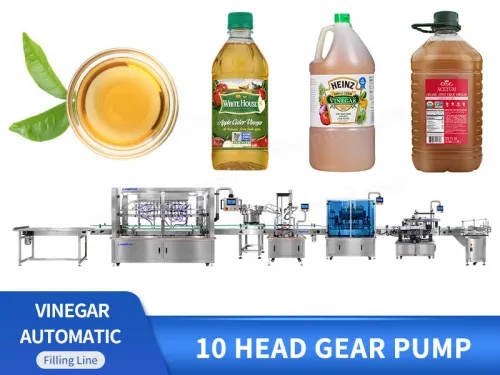

Gear Pump Filling

Capping

Labeling

Finished Product Output

PARAMETER

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg

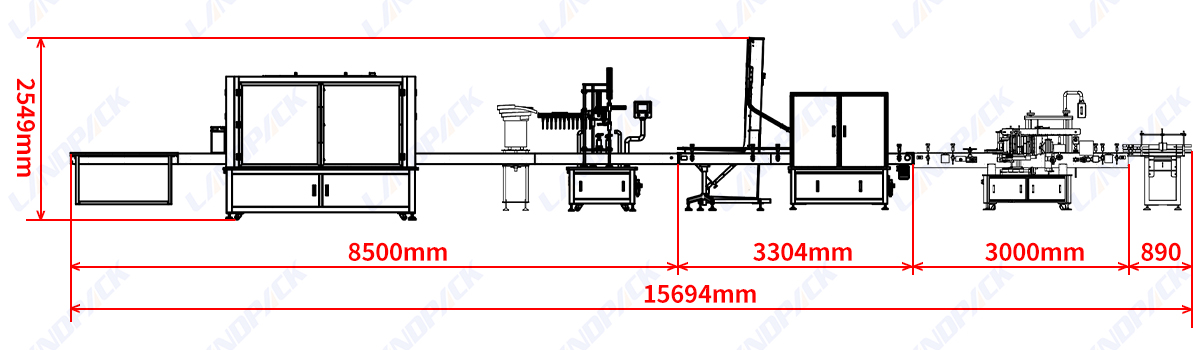

Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

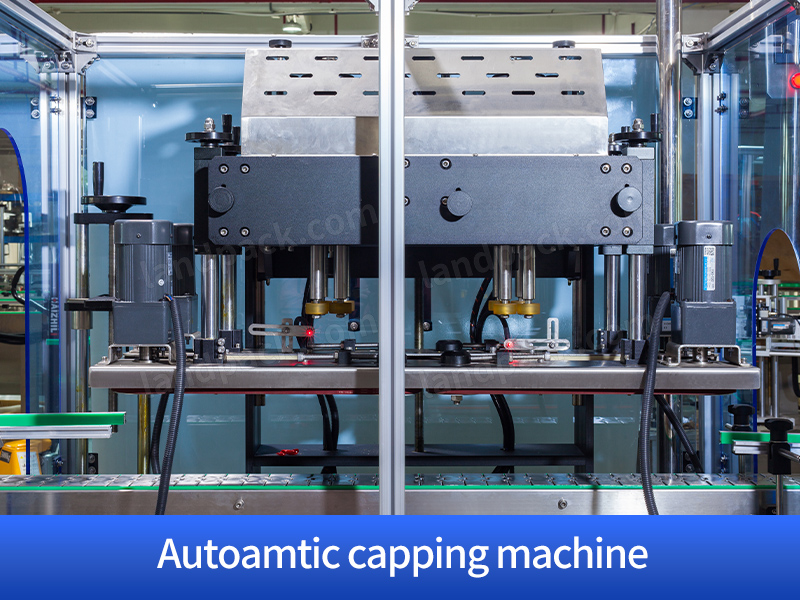

			Double-head four-wheel capping machine
			Speed	0-100pcs/Min
			Cap Type	Screw cap
			Bottle Diameter	30-110mm
			Bottle Height	50-250mm
			Cap Diameter	18-80mm
			Power	5KW
			Air Pressure	0.6-0.8Mpa
			Voltage	220V/380V, 50Hz/60Hz
			Weight	1000KG
			Dimension	2600mm1200mm 2050mm

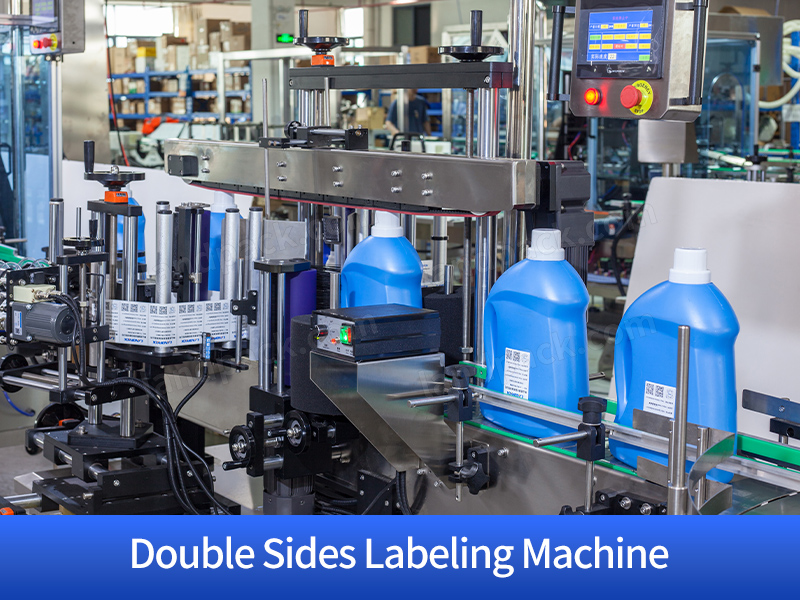

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm
