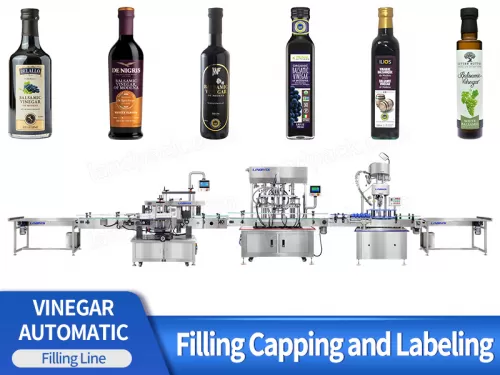

Automatic Piston Pump Vinegar Wine Filling Capping Labeling Machine Line

Application:

This integrated packaging line combines automatic bottle sorting, precision filling, secure capping, and accurate labeling into one efficient solution. The system is specially designed for processing various liquid food products including vinegar, wines, juice, condiments, soy sauces, liquor, cooking wine, tomato sauce and similar viscous liquids.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Piston Pump Vinegar Wine Filling Capping Labeling Machine Line

FEATURES

1.Modular Nozzle Configuration - Flexible setup with 2-12 filling heads enables simultaneous processing of multiple containers to match your production volume.

2.Drip-Free Dispensing Technology - Integrated pneumatic shut-off valves eliminate post-fill leakage for clean operation and zero waste.

3.Multi-Mode Operation - Selectable processing configurations adapt to varying batch sizes and throughput requirements.

4.Universal Container Compatibility - Accommodates diverse bottle geometries without requiring specialized tooling or attachments.

5.Synchronized Servo Filling - Precision servo-driven system delivers rapid, consistent fills with micron-level accuracy across all nozzles.

Automatic Piston Pump Vinegar Wine Filling Capping Labeling Machine Line

WORKFLOW

Bottle Sorting

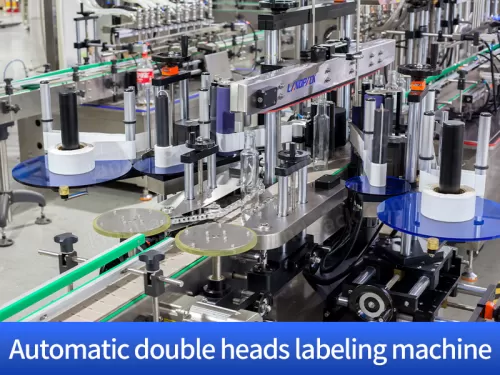

Automatic Double Side Labeling

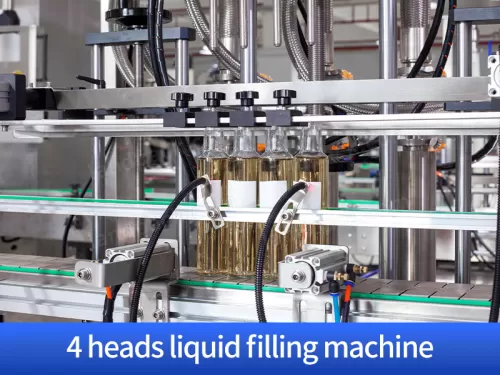

Automatic 4 Heads Vinegar Filling

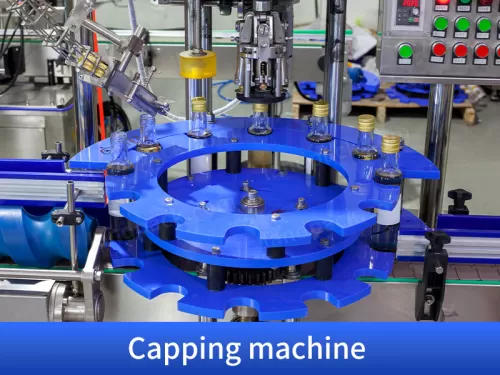

Automatic Capping

PARAMETER

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm

Bottle Liquid filling machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

			Automatic bottle capping machine
			Machine Model	LD-LP440Z
			Power Supply	110/220V 50-60HZ 1KW
			Capacity	1000bph
			Suitable cap size	φ25-38mm（Could be customized）
			Suitable bottle height	About 150-320mm
			Machine size	About 355017002250mm
			Package size	About 172016002380mm
			Package weight	680kg
