Applications

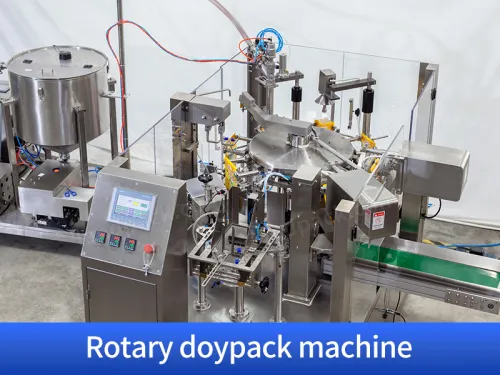

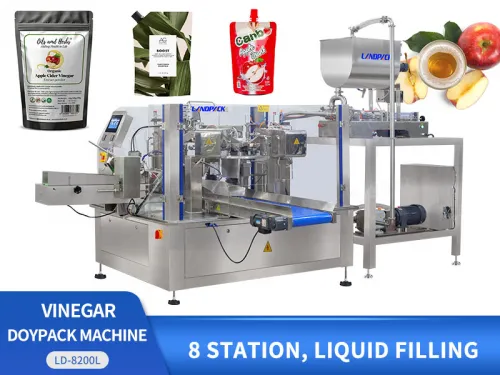

Rotary Type Vinegar Liquid Doypack Filling Packing Machine For Zipper Premade Pouch

Introduction:

This machine is mainly used for vinegar, honey, juice, wine, drinks, cod liver oil, olive oil, essential oil, facial cleanser, shower gel, hair oil, ink, disinfectant, injection, laundry detergent and various medical liquid filling and sealing.

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Rotary Type Vinegar Liquid Doypack Filling Packing Machine For Zipper Premade Pouch

FEATURES

1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2. Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.

5. The part where touch to the materials is made of stainlesss steel and according with the request of GMP.

Automatic Premade Pouch Rotary Filling Machine For Sauce Jam Ketchup Mayonnaise

WORKFLOW

Piston metering device

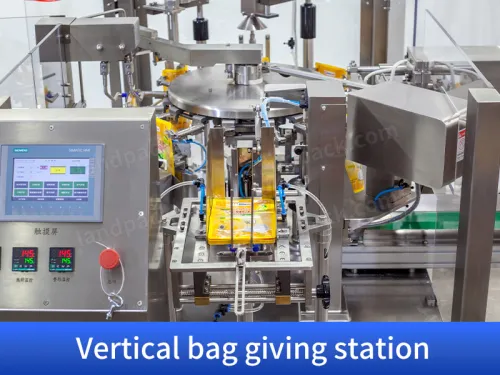

Horizontal bags feeding

Date printing

Zip lock openning

Up/down bag opening

Double heads filling

Twice heating sealing

Finished product ouput

PARAMETER

	Model	LD-8200/LD-8250
	Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
	Size	W: 70-200/100-250
	Filling range	10-1000g/20-2500g
	Packing speed	40-60bag/min（speed is determined by the product filling quantity）
	Average precision	≤ ±1%
	Total power	2.5KW
	Dimensions	1900mm X 1570mm X 1700mm（LWH）
	Workflow	giving bag→coding →opening →filling 1 →filling 2→auxiliary→exhaust→heat sealing→forming and output product
	Main standard parts	1. Code printer 2. PLC control system 3. Bag opening device 4. Vibration device 5. Cylinder 6. Electromagnetic valve 7. Temperature controller 8. Vacuum pump 9. Inverter 10. Output system
