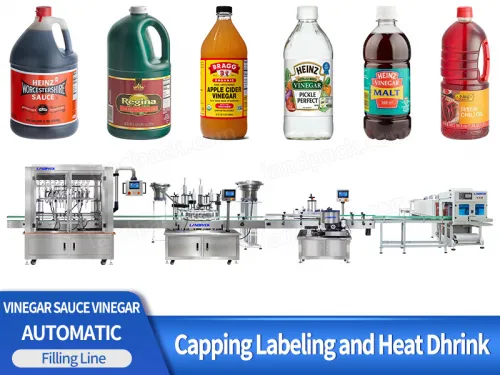

Vinegar Filling Machine | Automatic Bottle Filling Capping Labeling Shrinking Line

Application:

-Food & Beverage: Vinegar, soy sauce, fruit juice, syrup, dairy, red wine, liquor

-Personal Care & Pharma: Mouthwash, cosmetic liquids, alcohol-based solutions

-Industrial & Agrochemical: Cleaning agents, chemical liquids, pesticides

Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

This versatile filling system is designed for free-flowing, particle-free liquids across industries, including:

-Food & Beverage: Vinegar, soy sauce, fruit juice, syrup, dairy, red wine, liquor

-Personal Care & Pharma: Mouthwash, cosmetic liquids, alcohol-based solutions

-Industrial & Agrochemical: Cleaning agents, chemical liquids, pesticides

Customizable configurations ensure precise filling for diverse viscosity requirements and container types.

Vinegar Filling Machine | Automatic Bottle Filling Capping Labeling Shrinking Line

FEATURES

1.Broad Application Range - Designed for free-flowing liquids including condiments (vinegar, soy sauce), beverages (juices, wines), and spirits. Custom configurations available for specialized formulations.

2.GMP-Compliant Construction - Full 304 stainless steel framework provides superior corrosion resistance and meets stringent hygiene standards.

3.Advanced Control System - Features PLC automation with user-friendly touchscreen interface for precise operation monitoring and adjustment.

4.Intelligent Detection System - Infrared sensors guarantee accurate container positioning with automatic shut-off to prevent spillage.

5.Precision Labeling Technology - Specialized rotary labeling unit ensures bubble-free application with perfect alignment for cylindrical containers.

6.Premium Drive Components - Incorporates industrial-grade motors and electrical systems from leading manufacturers for consistent performance.

7.Durable Conveyance System - Heavy-duty food-grade belts offer exceptional wear resistance, quiet operation, and simplified sanitation.

Vinegar Filling Machine | Automatic Bottle Filling Capping Labeling Shrinking Line

WORKFLOW

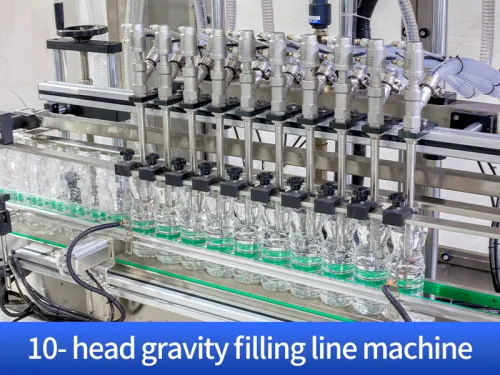

1.10- head gravity filling line machine

2.Vibrating bowl sort caps

3.Capping machine

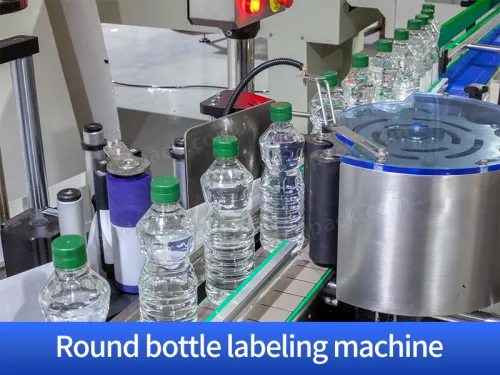

4. Round bottle labeling machine

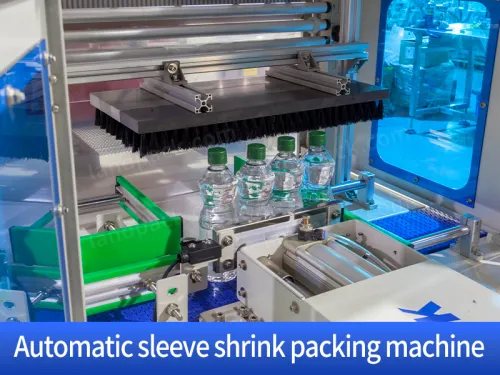

5.Automatic sleeve shrink packing machine

PARAMETER

Piston Pump Liquid Filling Machine
Model	LFZ-04	LFZ-06	LFZ-08	LFZ-10
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

	Automatic bottle capping machine
	Machine Model	LD-LP340
	Power Supply	110/220V 50-60HZ 1KW
	Capacity	1000bph
	Suitable cap size	φ25-38mm（Could be customized）
	Suitable bottle height	About 150-300mm
	Machine size	About 355015002050mm
	Package size	About 172016002380mm
	Package weight	630kg

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm

	Shrink Wrapping Machine
	Sealing Type	Continuous Sealing
	Installed Power	220V/ 60HZ
	Packing Capacity	Max. 40 Packs per Minute (Depends on Product Size)
	Sealing Height/ Packing Width	220MM/ 500MM
	Air Pressure	0.5MPA (5 BAR)
	Sealing Knife	Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
	Sealing Machine Dimensions	2600 X 1450 X 1680 MM
	Shrink Heat Tunnel
	Oven Size	1500MM (L), Entrance 600(W) X 300(H) MM
	Conveyor	Chains with Rotating Silicon Coated Rods
	Tunnel Machine Dimensions	1800 X 980 X 1560 MM
	Weight (Net/ Gross)	1000KGS/ 1100KGS (For Reference Only, Including Sealer and Tunnel)
