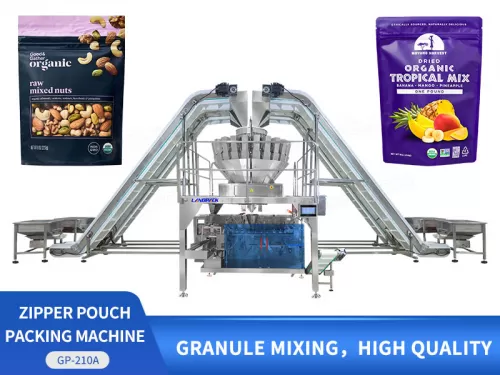

Automatic Mixed Granule Zipper Pouch Packing Machine Horizontal Doypack Pouch Machine

Introduction:

Suitable for packing granule material into doypack zipper pouch, such as nuts, cashews, peanuts, candy, beans, granular medicine, seeds, popcorn, pet food, melon seeds, pistachios, pesticides, fertilizer, feed, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Automatic Mixed Granule Zipper Pouch Packing Machine Horizontal Doypack Pouch Machine

FEATURES

1. Customized Horizontal Premade Pouch Packing Solution: Tailored for specific packaging needs.

2. Four Slope Conveyor Belts: Feeds four types of materials, washable with low-pressure water.

3. 24-Head Weigher: Independently weighs and discharges four materials simultaneously.

4. Horizontal Bag Dispensing Station: Handles premade zipper pouches.

5. Ribbon Date Printer: Prints up to three lines of text.

6. Zipper Pouch Opener: Efficiently opens zipper pouches.

7. Filling Hopper: Features a no-bag, no-filling mechanism.

8. Sealing Device: Includes an empty-bag, no-sealing function.

9. Conveyor Belt Outlet: Transports finished products out.

Automatic Mixed Granule Zipper Pouch Packing Machine Horizontal Doypack Pouch Machine

WORKFLOW

4 sets of slope conveyor belt

24 heads weigher weighing

Horizontal feeding bag conveyor

Ribbon code print

Zipper pouch opener

Filling hopper

Sealing device

Conveyor belt outlet

PARAMETER

Automatic Powder Horizontal Pouch Packing Machine
Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
