Application:
It is suitable for granule material packing in big capacity zipper pouch, such as beans, chips, cookies, jerky, nuts, dry fruits, raisins, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
It is suitable for granule material packing in big capacity zipper pouch, such as beans, chips, cookies, jerky, nuts, dry fruits, raisins, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.
FEATURES
1. Mini doypack machine with compact design to pack heavy capacity;
2. Servo motor driven for reliable performance;

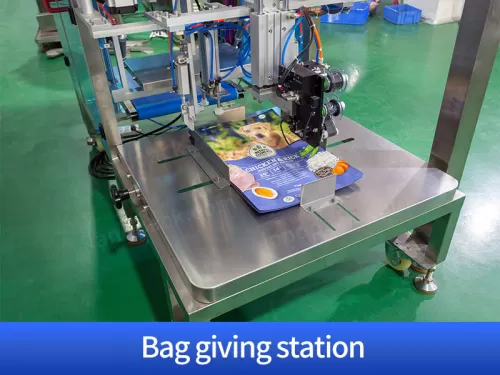

3. Bag giving station with date printer;
4. Zipper opener device;
WORKFLOW
Granule Material Feeding

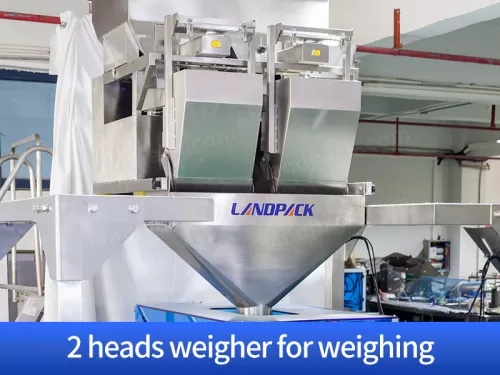

Granule Material weighing

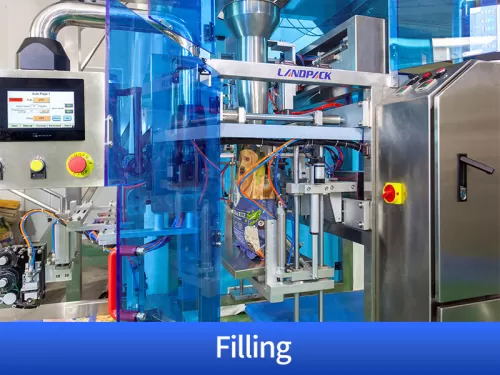

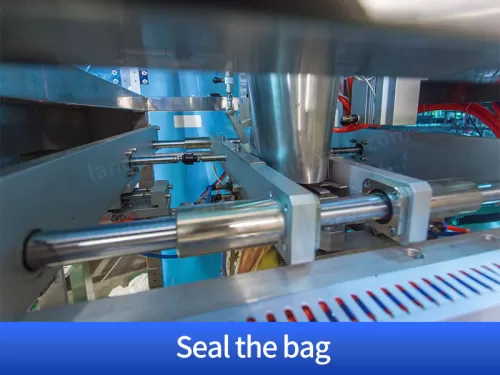

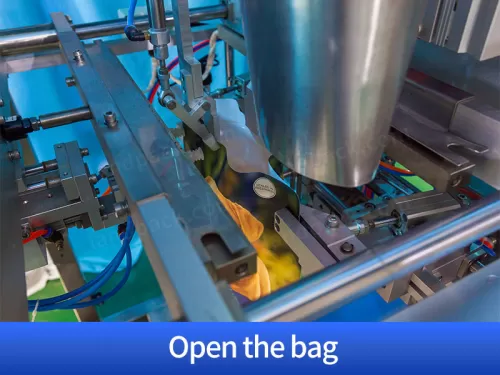

Premade Pouch Opening Filling Sealing
Finished Product Output
PARAMETER
Type | Low Cost Mini Doypack Premade Pouch 5-15kg Granular Packing Machine | |||
LDB-200 | LDB-300 | LDB-430 | ||
Bag Material | Multi-layer Composite Premade Bag(e.g.: PET/PE) | |||
Premade bag type | 3-sides sealing bag, stand-up bag) | |||
Upgraded Bag Type | (Need additional purchase | Gusset Bag, Zipper Bag, box bag | ||
of functional device) | (Need additional purchase of functional device | |||
Bag size | 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm | |
70mm≤L≤150mm | 100mm≤L≤300mm | 100mm≤L≤430mm | ||
Speed | 0~60bags/min | 0~15bags/min | ||
Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) | |||
Sealing Width | 10mm(5--20mm) can be customized | |||
Voltage | 220V, Single-phase,50/60HZ, 1.2KW | |||
Air Pressure | 0.65Mpa | |||
Air Consumption | Standard machine, no additional function | |||
Body Dimension | 1770*600*1230mm | 1770*600*1360mm | ||
Packing Dimension | 1860*710*1550mm | 1860*710*1650mm | ||
Export non-fumigation wooden case |
