Application:
It was design for user which require a small output, small occuiped area requirement. Using in the preformed bag type like zipper bag. Working with filling system like weigher it can be using for pack coffee, rice, sugar, salt, nuts, candy etc.
Kindly Reminder:
Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity
VIDEOS
Application
It was design for user which require a small output, small occuiped area requirement. Using in the preformed bag type like zipper bag. Working with filling system like weigher it can be using for pack coffee, rice, sugar, salt, nuts, candy etc.
FEATURES

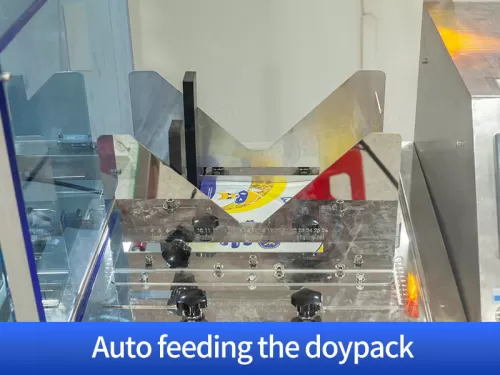

1. Zipper bag device: design for automatic open zipper, make sure the pouch filling was successful.

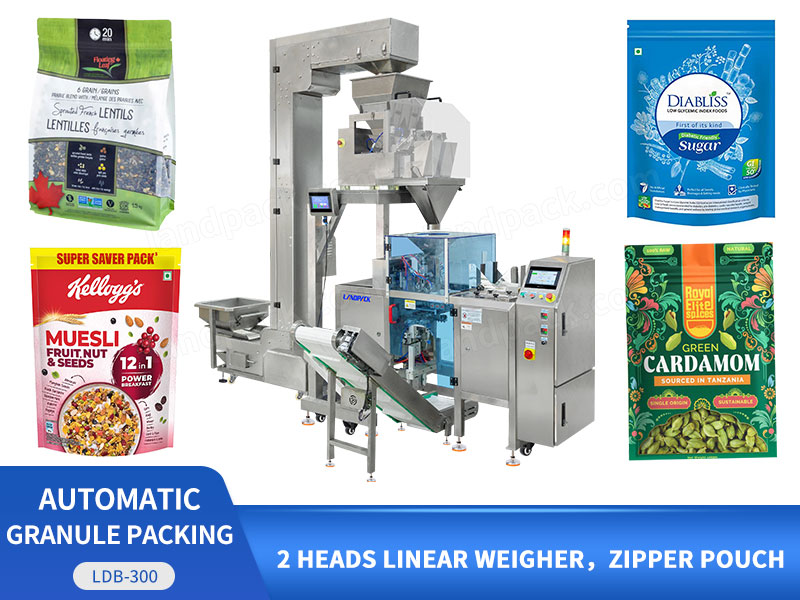

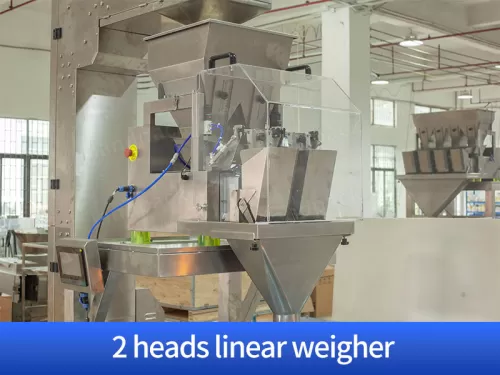

2. Liear weigher: It can be 2 or 4 head accordingly to client packing requirement, using for automatic weighing and filling.
3. Movable platform: Using for support the linear weigher, it can be movable for easy remaintain or daily cleaning.

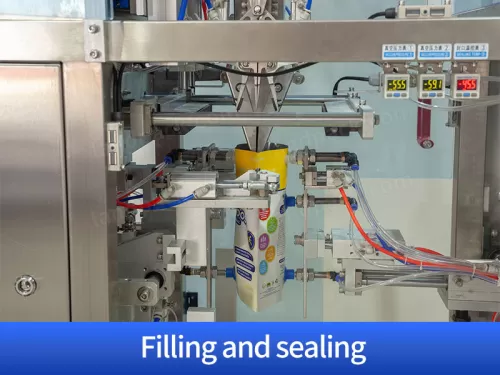

4. Sealing station: For bag delivering and sealing, vacuum or nitrogen gas feeding, date printing, bag tapping was also available.
WORKFLOW

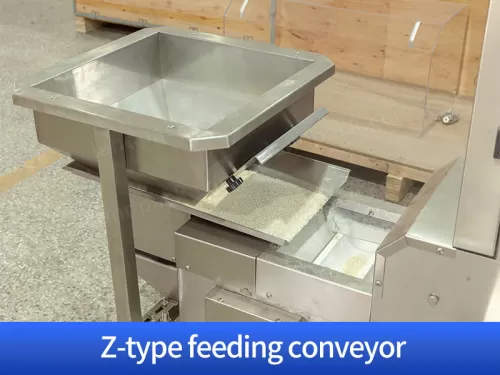

Granule Material Feeding
Granule Material weighing
Premade Pouch Opening Filling Sealing

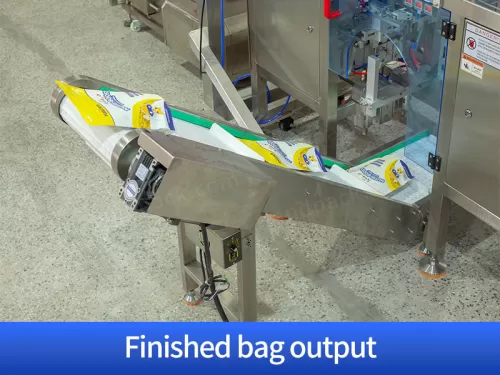

Finished Product Output
PARAMETER
Type | LDB-200 | LDB-300 | LDB-430 | |||||||
Bag Material | Multi-layer Composite Premade Bag(e.g.: PET/PE) | |||||||||
Premade bag type | 3-sides sealing bag, stand-up bag | |||||||||
Upgraded Bag Type | (Need additional purchase | Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device) | ||||||||
of functional device) | ||||||||||
Bag size | 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm | |||||||
70mm≤L≤150mm | 100mm≤L≤300mm | 100mm≤L≤430mm | ||||||||
Speed | 0-60 bags/min | 0-15 bags/min | ||||||||
Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) | |||||||||
Sealing Width | 10mm (5-20mm) can be customized | |||||||||
Voltage | 220V, Single-phase,50/60HZ, 1.2KW | |||||||||
Air Pressure | 0.65 Mpa | |||||||||
Air Consumption | Standard machine, no additional function | |||||||||
Body Dimension | 1770*600*1230mm | 1770*600*1360mm | ||||||||
Packing Dimension | 1860*710*1550mm | 1860*710*1650mm | ||||||||
Export non-fumigation wooden case | ||||||||||
