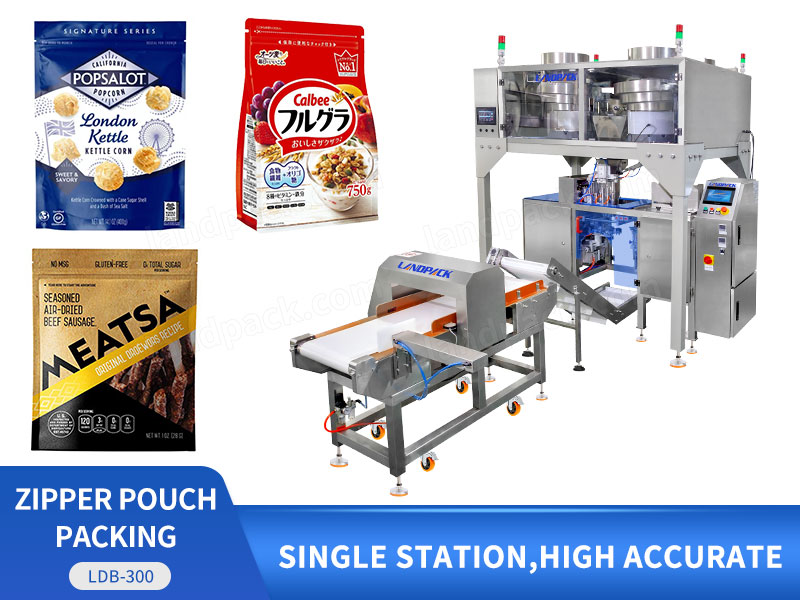

Fully Automatic Granule Zipper Pouch Mini Doypack Counting Packaging Packing Machine With Metal Detector

Application:

Applied for packing various kinds of granular by premade pouch and doypack, such as pet food, peanut, snacks, chocolate, nuts, seeds, potato chips, peanut, dried fruit, frozen dumplings, biscuits, corn, hardware, plastic, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Fully Automatic Granule Zipper Pouch Mini Doypack Counting Packaging Packing Machine With Metal Detector

FEATURES

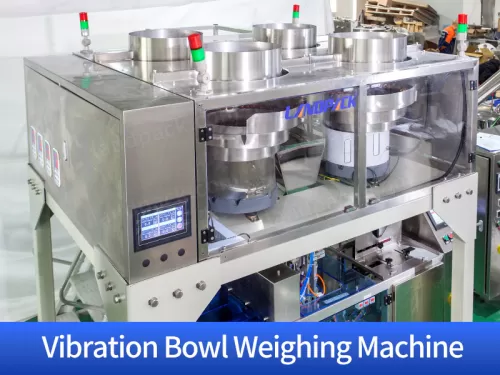

1. Vibration Bowl Weighing Machine With Economical Price.

2. Mix Four Types Of Nuts.

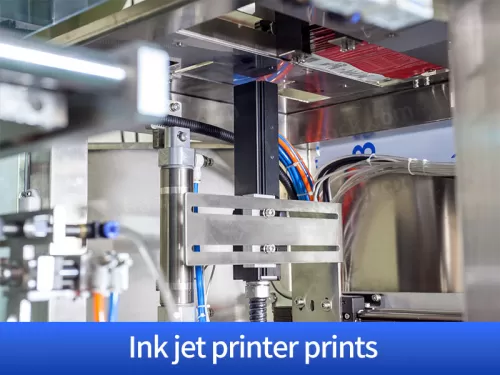

3. With ink jet printer, printing information can be set on touched screen, more intelligent.

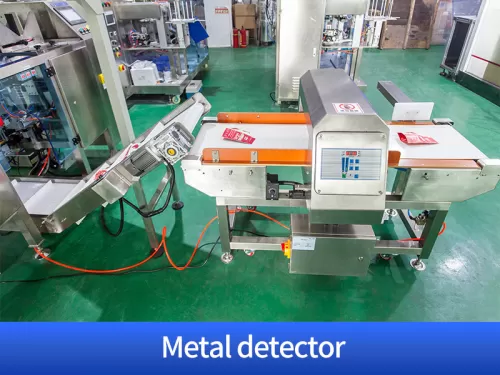

4. With metal detector，efficiently select the qualified products.

Automatic Mini DoyPack Nut Cashew Mixing Filling Packing Machine With 4 Vibrating Feeders

WORKFLOW

Granule Material Feeding

Granule Material Counting

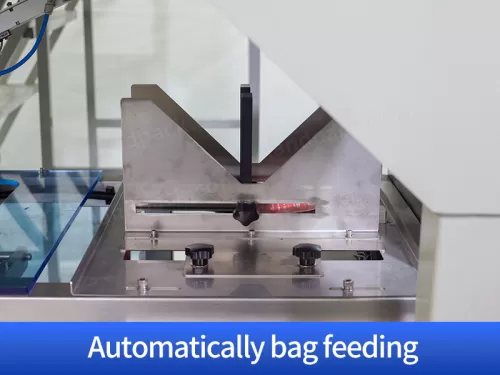

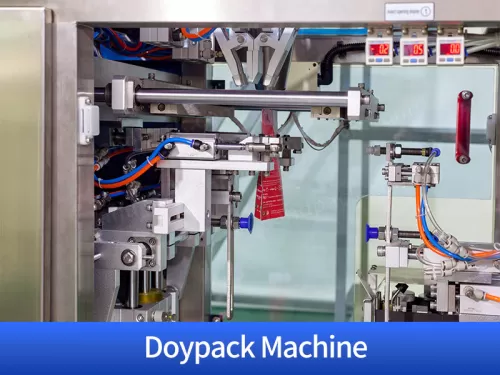

Premade Pouch Opening Filling Sealing

Finished Product Output

PARAMETER

			Granule Packing Machine
			Bag Material	Multilayer Composite Premade Bag (e.g.: PET/PE)
			Bag Type	3 Side Seal Bag, Stand-up Bag
			Upgradable Bag Type	Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)
			Size Range	80mm≤W≤300mm 100mm≤L≤300mm
			Speed	0-15bags/min
			Sealing Type	Straight grain, the pitch is 1mm (Optional reticulate)
			Sealing Width	10mm (5-20mm can be customized)
			Voltage	220V, Single-phase, 50/60HZ, 1.2KW
			Air Pressure	0.65Mpa
			Air Consumption	0.3m³/min (Standard machine, no additional function)
			Body Dimension	17706001260mm
			Packing Dimension	18607101650mm (Export non-fumigation wooden case)
