Horizontal Dried Food Doypack Packing Machine Zipper Pouch Filling Sealing Machine

Application:

Suitable for packaging various sticky products and frozen products, such as snack, potato chips, chicken nuggets, meat, quick-frozen dumplings, frozen food, various seafood, chips, popcorn, beef jerky, fruit, etc.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Horizontal Dried Food Doypack Packing Machine Zipper Pouch Filling Sealing Machine

FEATURES

1. Washable conveyor, no bacteria, more sanitary.

2. Multi-head weigher with dimple surface, suitable for the sticky product.

3. Integrated metal & weight detection machine, save space.

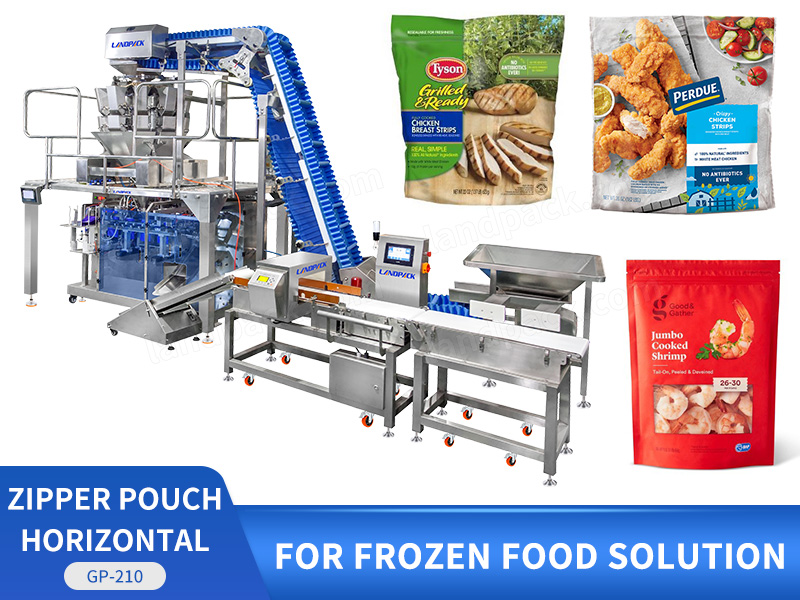

Horizontal Frozen Food Doypack Packing Machine Premade Pouch Filling Sealing Machine

WORKFLOW

Giving bag

Pick up the bag

Automatic Coding

Open the bag up and down

Filling

Heating sealing

Output of product

PARAMETER


Type	LDSP-160	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined	20-50bags/min (speed is determined	20-50bags/min (speed is determined
Packing Speed	by the product filling quantity)	by the product filling quantity)	by the product filling quantity)
Machine weight	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
