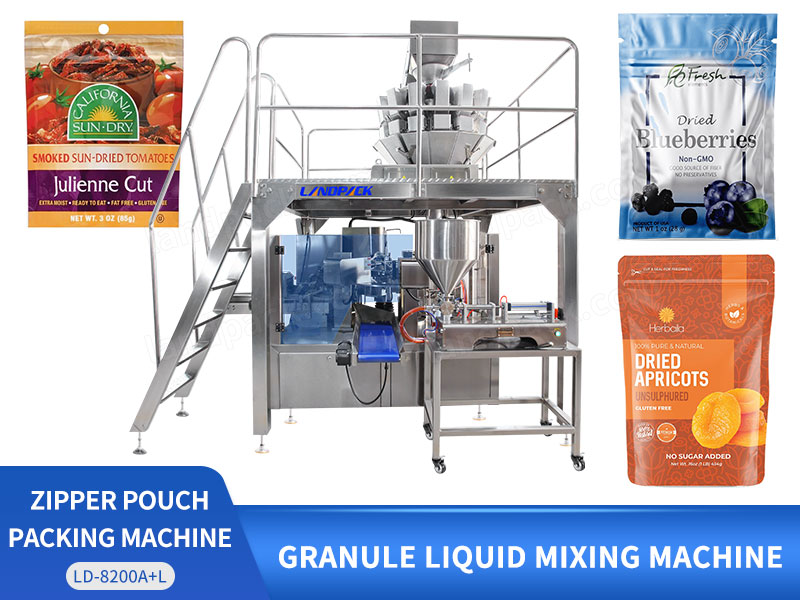

Snack Food Weighing Filling Packing Doypack Zipper Zip Lock Granule Liquid Pouch Bag Packaging Machine

Application:

This machine handles various premade bags, enhancing product presentation and brand visibility. Designed for precision, which ensures accurate product filling and secure sealing suitable for meatballs, macaroni, hamburgers, popcorn, dry pasta.

Kindly Reminder:

Please tell us the following information while you send us inquiry. Base on your message, we will suggest the optimum solution to you for reference. Thank you.
1.Your product
2.Packaging Container
3.Output capacity

Chat Now Send E-mail

Benefits & Features

Technical Parameters

VIDEOS

Application

Snack Food Weighing Filling Packing Doypack Zipper Zip Lock Granule Liquid Pouch Bag Packaging Machine

FEATURES

1. With liquid level control device.

2. With liquid mixing device to prevent the micro-particle deposition of materials.

3. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of all clips, easily operate, and save time.

4. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.

Snack Food Weighing Filling Packing Doypack Zipper Zip Lock Granule Liquid Pouch Bag Packaging Machine

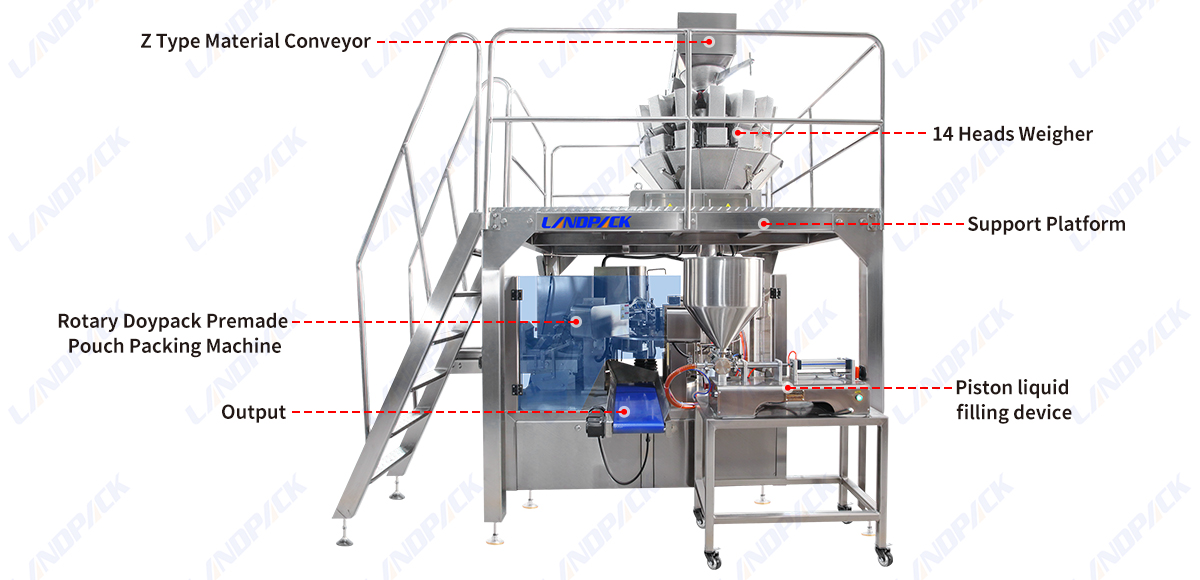

WORKFLOW

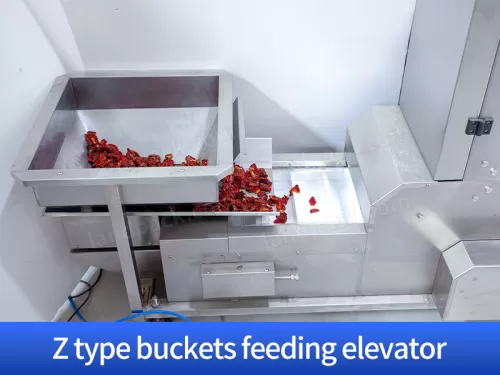

Granule Material Feeding

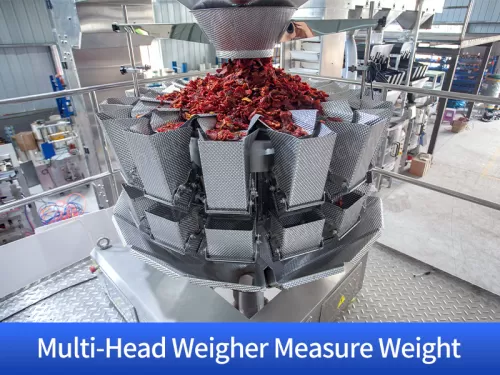

Granule Material weighing

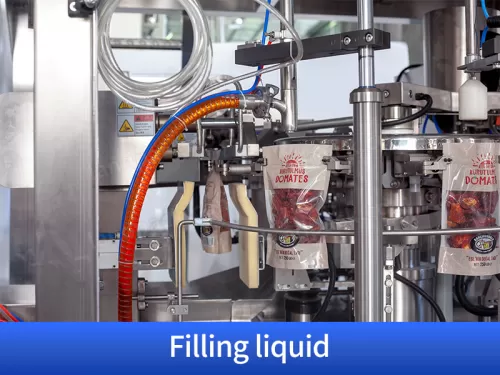

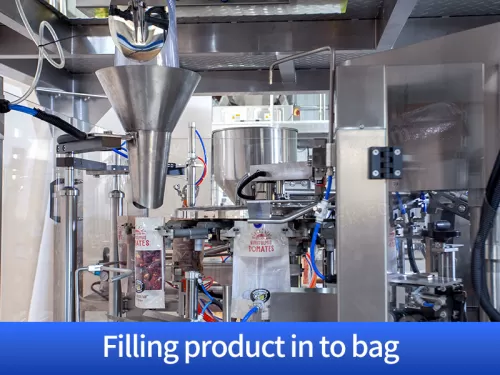

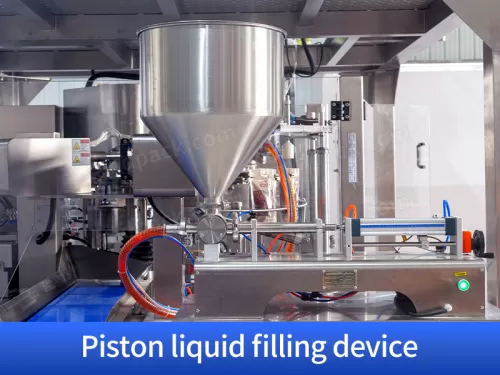

Premade Pouch Opening Filling Sealing

Liquid Mixing

Finished Product Output

PARAMETER

	Zipper Pouch Packing Machine
	Model	LD-8200/LD-8250
	Packing material	all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.
	size	W：70-200/100-250
	Filling range	10-1000g/20-2500g
	Packing speed	40-60bag/min（speed is determined by the product filling quantity）
	Average precision	≤ ±1%
	Total power	2.5KW
	Dimensions	1900mm X 1570mm X 1700mm（LWH）

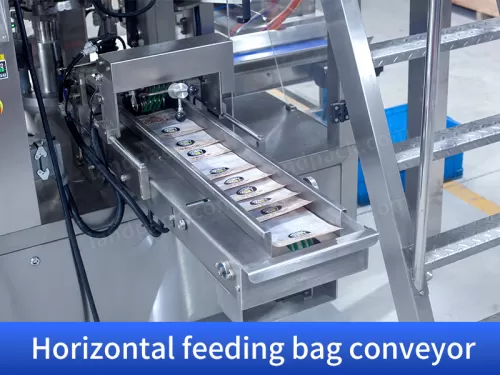

	Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
	Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system
